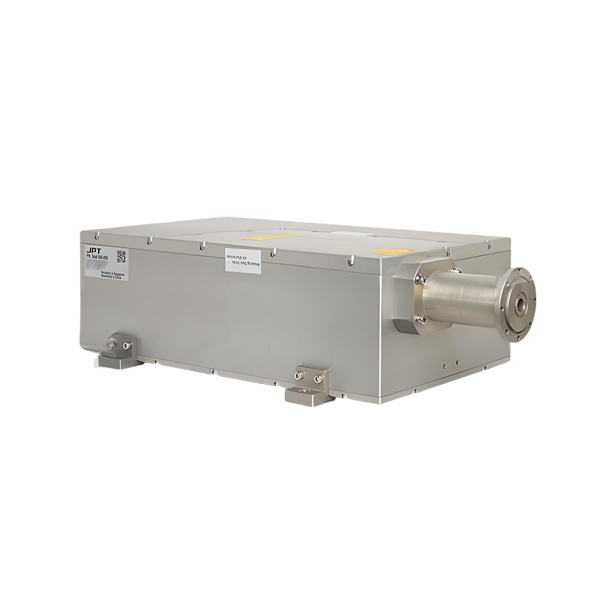

JPT UV 15W, 20W Laser Sources
- Widely used in brittle material drilling, flexible material cutting, IC package trimming, wafer scribing, solar cell scribing and other industries
- Optical integration, anti-interference, one-button activation
- Fully sealed structure, dust-proof, moisture-proof
- Introduces intracavity self-purification for longer life
- Small, compact laser saves installation space
Products Categories
Get A Free Quote
Laser parameters
| model number | UV-355-15W | UV-355-20W | |||
| wavelength （nm） | 355 | ||||
| average power （W） | 15W | 20W | |||
| pulse energy（mj） | ＞300 | ||||
| Specified Frequency （KHZ） | 50 | 60 | |||
| Repeat frequency range （KHZ） | 10-300 | ||||
| pulse width （ns） | ＜15 | ＜20 | |||
| Beam quality （M²） | ＜1..2 | ||||
| spot circularity （%） | 90% | ||||
| Beam diameter（mm） | 0.4-0.8 | ||||
| dispersion angle（mRad） | ＜1.5 | ||||
| pointing stability（urad/℃） | ＜20 | ||||
| polarisation ratio | 100:1 Linear ; Horizontal | ||||
| Pulse Stability（%RMS） | ＜3 | ||||
| Average power stability（% OVER 12hours） | ＜3 | ||||
| Environmental temperature （℃） | 0-35℃ | ||||
| Environmental humidity （%） | 20-80 | ||||
| storage temperature （℃） | -20-50 | ||||
| Storage humidity （%） | 20-80 | ||||
| demand for electricity supply （VDC） | 36 | ||||
| Average power consumption （W） | ＜250 | ＜400 | |||
| communication protocols | RS232 | ||||
| Cooling method | water cooling | ||||
| Sizes | 180*337*114mm | 205*400*124mm | |||
| Weights （KG） | 9.8 | 15 | |||
