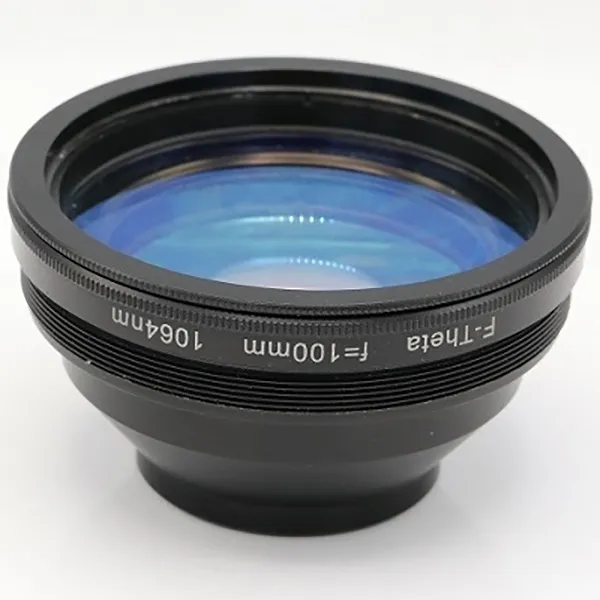

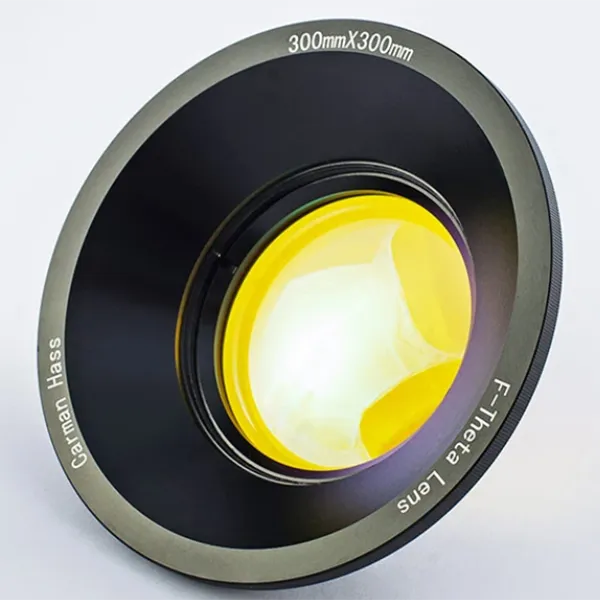

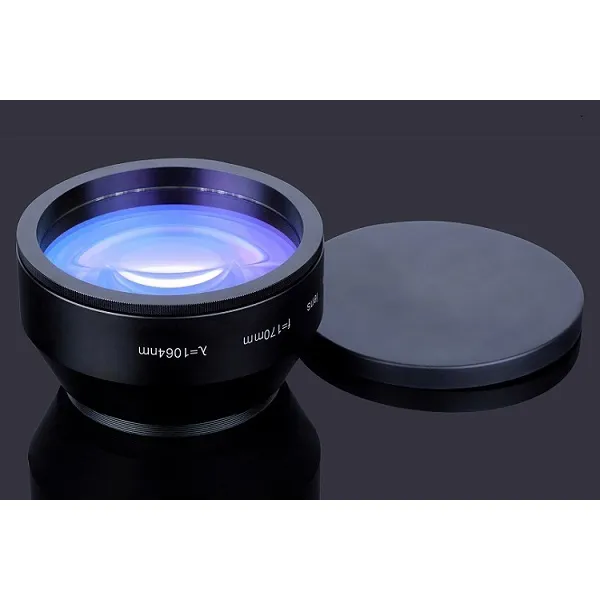

1064nm Fibre Optic Scanning Lens
Fibre optic scanning field mirrors are mainly used in various types of optical systems for scanning and processing. Fibre optic scanning field mirrors functionally belong to fibre optic focusing mirrors, and the difference between them and ordinary focusing mirrors is that they have the characteristic of F*θ, and the processing position can be calculated according to F*θ, while maintaining uniformity over a large range of fields of view.
Products Categories
Get A Free Quote
Product Advantage
1. Designed for high machining accuracy, all systems reach the diffraction limit
2. Good F*θ linearity with low distortion
3. Good roundness and uniformity within the width.
4. Imported quartz material, good face shape accuracy, high precision calibration
5. Customisable to customer parameters, fast response
Specification parameters
| serial number | Product Specification | focus on (mm) | Scanning range (mm) | Maximum incident spot (mm) | Working distance (mm) | whorl of fingerprint (mm) |
| 1 | 1064-12-F85-20CA | F85 | 12*12 | 10 | 131.5 | M85*1 |
| 2 | 1064-70-F100-10CA | F100 | 70*70 | 10 | 115.01 | M85*1 |
| 3 | 1064-110-F160-20CA | F160 | 110*110 | 10 | 176.94 | M85*1 |
| 4 | 1064-175-F254-10CA | F254 | 175*175 | 10 | 304 | M85*1 |
| 5 | 1064-200-F290-10CA | F290 | 200*200 | 10 | 309.86 | M85*1 |
| 6 | 1064-220-F330-20CA | F330 | 220*220 | 10 | 352.47 | M85*1 |
| 7 | 1064-300-F420-30CA | F420 | 300*300 | 20 | 438 | M85*1 |
| 8 | 1064-400-F520-20CA | F520 | 400*400 | 20 | 528.2 | M85*1 |
