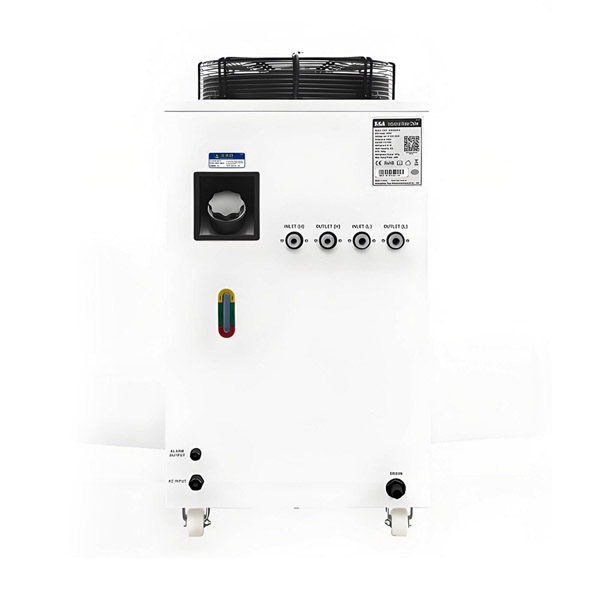

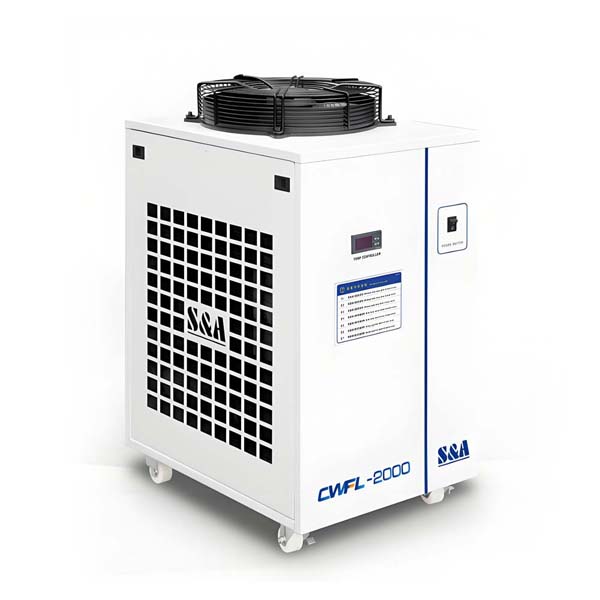

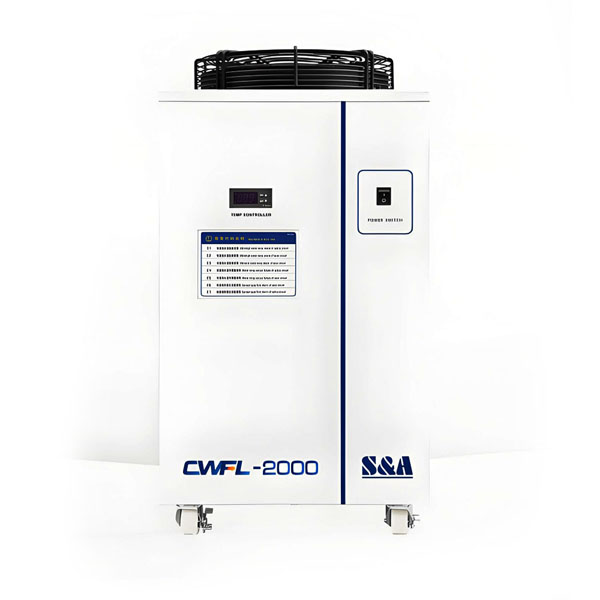

CW-2000W Laser Chillers
CWFL-2000 fibre laser chiller is specially designed for 2000W fibre laser, it can cool down the temperature quickly and stabilise the light output rate, it adopts dual-temperature and dual-control mode, high-temperature cooling of the laser head, low-temperature cooling of the laser, saving installation space, it has a variety of settings and fault display function, it is equipped with compressor delay, overcurrent protection, and multiple alarm protection such as water flow, temperature abnormality and so on, and it supports multi-country power supply specifications.
Products Categories
Get A Free Quote
Product Features
- Stable refrigeration, environmental protection and energy saving, long service life.
- Laser chiller intelligent temperature controller with two temperature control modes, suitable for different use occasions; a variety of settings and fault display function.
- With a variety of alarm protection functions: compressor delay protection; compressor overcurrent protection; water flow alarm; temperature over/under the alarm.
- Multi-country power supply specifications; ISO9001 certified, CE certified, RoHS certified, REACH certified.
Chiller Parameter List
| Model | CWFL-2000 |
| Voltage | AC 1P 220~240V |
| Frequency | 50/60Hz |
| Current | 1.2~12.3A |
| Max. power consumption | 3kW |
| Heater power | 800W |
| Precision | ±1℃ |
| Reducer | Capillary |
| Pump power | 0.32kW |
| Tank capacity | 22L |
| Inlet and outlet | Rp1/2″+Rp1/2″ |
| Max. pump pressure | 40M |
| Rated flow | 1.5 L/min + >20L/min |
| N.W. | 54Kg |
| G.W. | 65Kg |
| Dimension | 670 X 47 0X 900mm (L X W X H) |
| Package dimension | 730 X 570 X 1050mm (L X W X H) |
