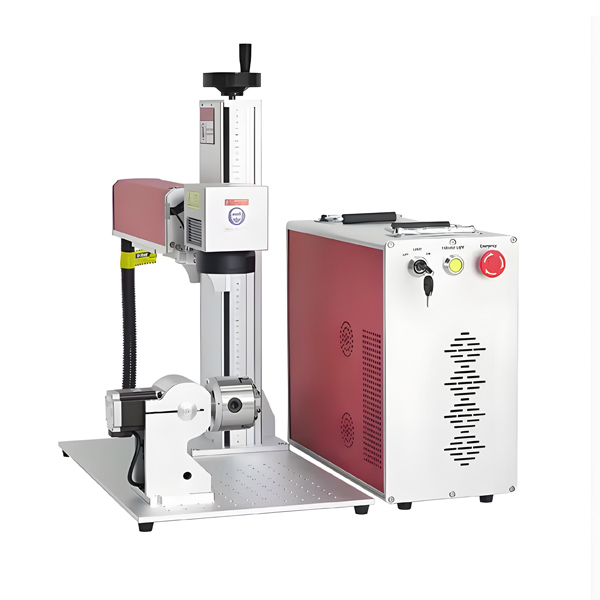

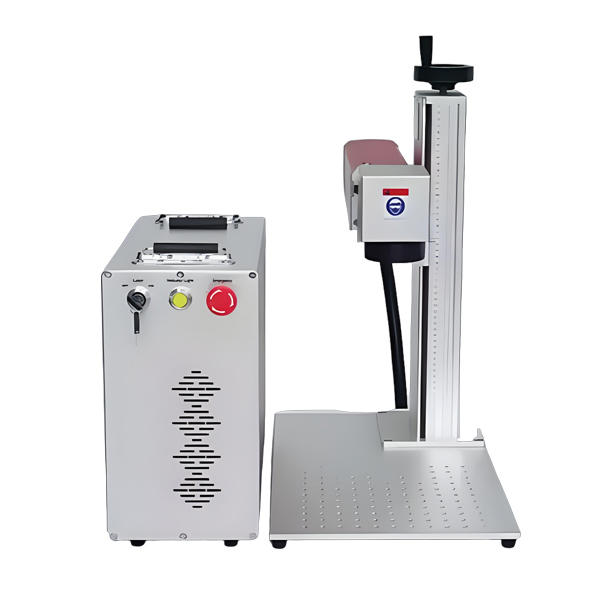

20W, 30W, 50W Desktop Mini Laser Engraver
The machine adopts a portable integrated structure design, small size, low power consumption, simple operation, easy to install and carry. And it has the characteristics of high speed, high quality, maintenance-free and long life of ordinary fiber laser marking machine.
Products Categories
Get A Free Quote
Features of the 20W, 30W, and 50W Desktop Mini Laser Engraver
- The structure is small and exquisite, convenient to carry, suitable for the needs of frequent change of processing locations and long-distance transportation;
- The marking effect is excellent, and various fine and complex patterns required by users can be marked on the extremely tiny surface;
- High electro-optical conversion rate, no power coupling loss, no consumables, maintenance-free, and long life;
- Affordable price, low use cost and high cost performance.
- Supporting the use of laptop computers, easy to install.
20W, 30W, 50W Desktop Mini Laser Engraver Specifications
| Model | CM-MFP20 | CM-MFP30 | CM-MFP50 |
| Laser Power | 20W | 30W | 50W |
| Laser Wavelength | 1064nm | ||
| Marking Speed | ≥7000m/s | ||
| Marking Area | 70*70mm/ 110*110mm/175*175mm | ||
| Marking Depth | ≤0.5mm | ||
| Repositioning Accuracy | ±0.001 | ||
| Beam Quality | ≤1.3M² | ||
| Power Adjustment Range | 10-100% | ||
| Single Point Pulse Energy | 1mJ | 1.2mJ | 1.3mJ |
| Pulse Repetition Frequency | 20-80KHz | 30-60kHz | 33-80kHz |
| Marking line width | 0.06mm（depends on the materials） | ||
| Min. Character | 0.2mm | ||
| Cooling Method | Air Cooling | ||
| Power Consumption | 500W | 600W | 700W |
| Power Requirement | 220V 50/60HZ | ||
| Dimension & Size | 780*210*600mm & 26KG | ||
