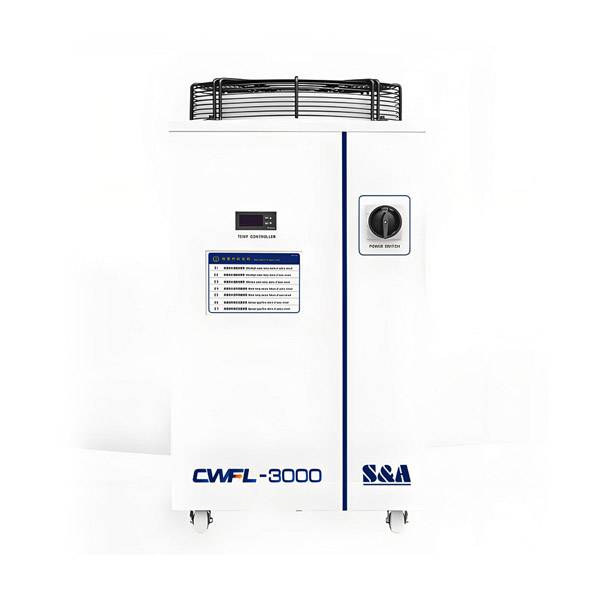

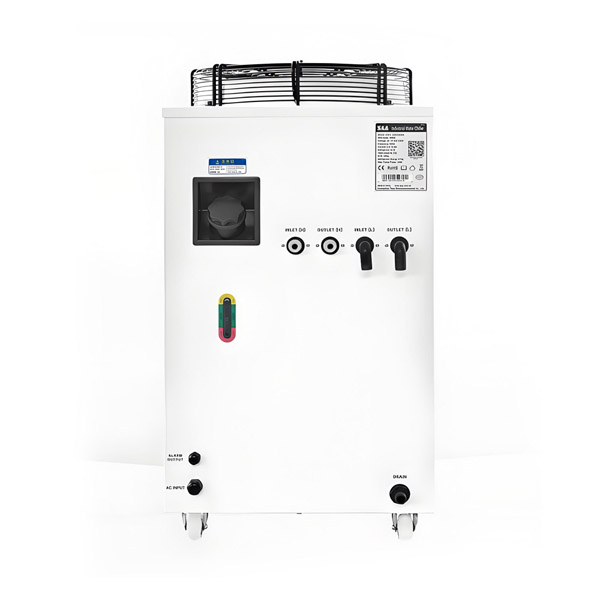

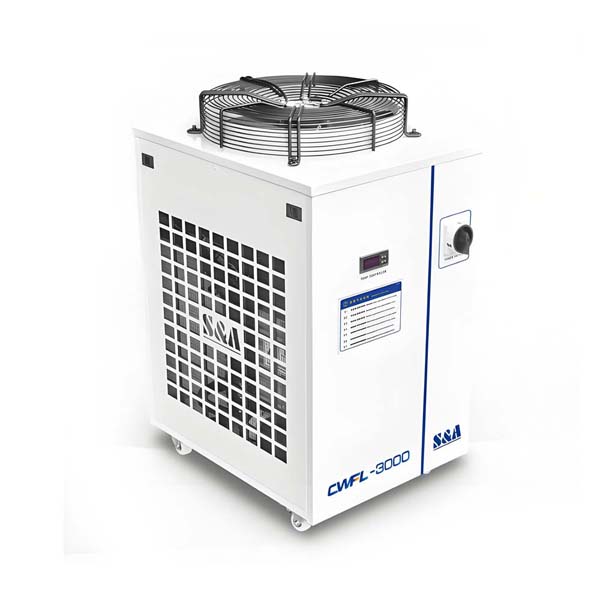

CW-3000W Laser Chillers
CWFL-3000 fibre laser chiller has two independent refrigeration water circuits, the high-temperature end is used to cool the laser head, and the low-temperature end is used to cool the laser, to achieve a multi-purpose, both cost-saving and space-saving.
In addition, CWFL-3000 fibre laser chiller also supports ModBus-485 communication with various settings and fault display functions, can choose environmentally friendly refrigerant, with a variety of alarm protection functions (such as compressor delay protection, overcurrent protection, water flow alarm, temperature over/under alarm, etc.), adapt to the power supply specifications of many countries, and also passed ISO9001 certification, CE certification, RoHS certification, REACH certification, stable refrigeration and easy to operate, and optional heaters and water purification configuration. It is also ISO9001, CE, RoHS and REACH certified, stable cooling and easy to operate, and can be equipped with optional heaters and water purification.
Product Features
- Stable refrigeration, environmental protection and energy saving, long service life.
- Laser chiller intelligent temperature controller with two temperature control modes, suitable for different use occasions; a variety of settings and fault display function.
- With a variety of alarm protection functions: compressor delay protection; compressor overcurrent protection; water flow alarm; temperature over/under the alarm.
- Multi-country power supply specifications; ISO9001 certified, CE certified, RoHS certified, REACH certified.
Chiller Parameter List
| Model | CWFL-3000 |
| Voltage | AC 1P 220~240V |
| Frequency | 50/60Hz |
| Current | 2.3~16A |
| Max. power consumption | 3.5kW |
| Heater power | 800W |
| Precision | ±1℃ |
| Reducer | Capillary |
| Pump power | 0..48kW |
| Tank capacity | 22L |
| Inlet and outlet | Rp1/2″+Rp1/2″ |
| Max. pump pressure | 43M |
| Rated flow | 1.5 L/min + >25L/min |
| N.W. | 54Kg |
| G.W. | 65Kg |
| Dimension | 690 X 47 0X 900mm (L X W X H) |
| Package dimension | 730 X 570 X 1050mm (L X W X H) |
