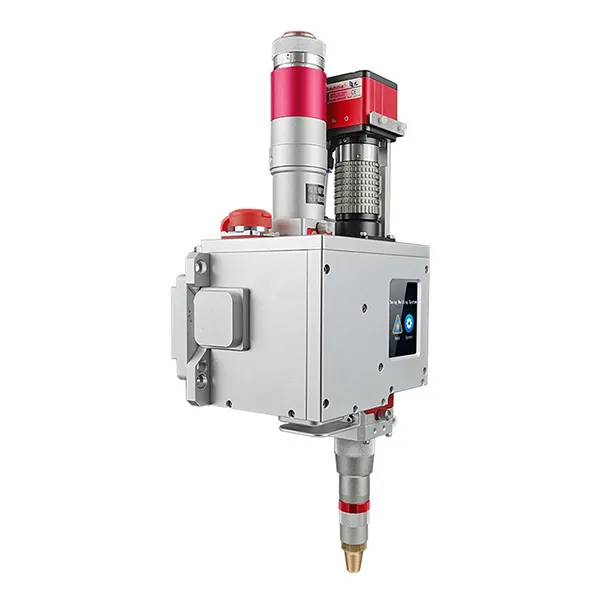

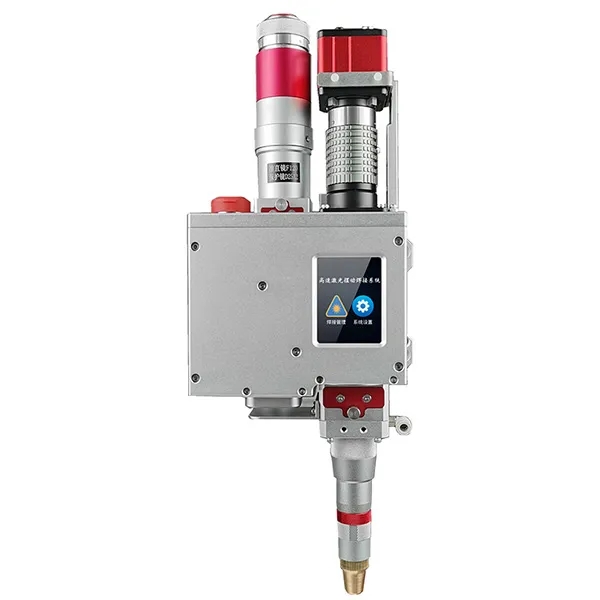

3000W Wobble Laser Welding Head
The oscillating welding head is a 3000W high power laser oscillating welding head with integrated design of ‘drive, control, touch screen, display, observation camera and high power optical scanning components, which can directly control the oscillating head and the laser, support the external IO trigger start, and support the customer’s remote interface. Secondary development. It can be widely used in laser welding, laser hardening, laser cladding and other high-end processing fields under platform automation or robot automation scenarios.
Product Features
1. Adopting high standard optical materials and high power coating process to support long time and high load work at full power.
2. Protective lenses, focusing lenses and collimating lenses are of drawer type modular design for easy maintenance.
3. Perfect sealing design, full optical and body water-cooling to improve the stability and service life of the welding head.
4. Adapt to all kinds of mainstream laser interface, support for multi-language switching。
5. Adopt coaxial blowing, effectively protect the lens, support with automatic wire feeding device,
6. Coaxial light source design, CCD camera image clearer
Parameter list
| Laser Interface | （Adaptation to all lasers） Standard QBH interface |
| laser wavelength | 1064-1080nm |
| laser power | 3000W |
| collimator focus | F100/F120/F150 |
| focus | F200/F250/F300 |
| Double Protective Lens | drawer-type |
| focusing lens | drawer-type |
| collimating lens | interchangeable |
| Laser control mode | Internal/external control |
| Trigger Mode | Internal/external control |
| communications signal | RS485/RS232 |
| Welding swing mode | Straight / Oval / Rectangle / Figure of 8 / Circle |
| Variable power mode | Support power segment adjustable |
| swing width | 8mm |
| Oscillation speed | ＜4000m/s |
| oscillation frequency | ＜200HZ |
| Repeatability | ＜2um |
| 8 hours temperature drift | ＜10um |
| Power supply | VDC ±15V/ 5A |
| Dust protection class | IP6 |
| Overall dimensions | 362*179*116 |
| weights | 4.2KG |
Get Free Quote of 3000W Wobble Laser Welding Head

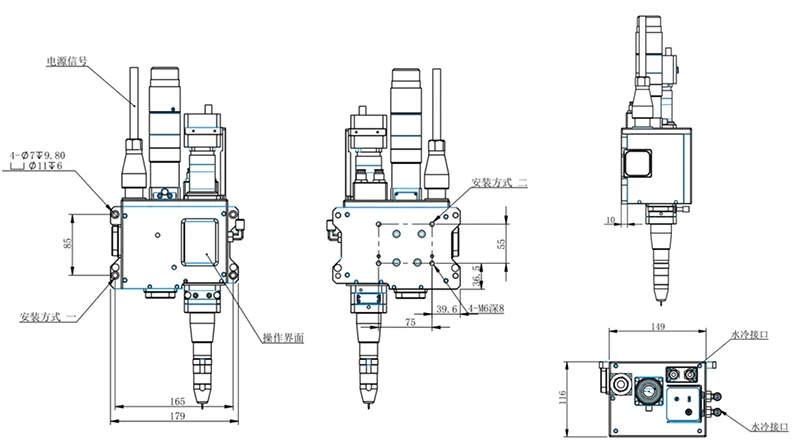

Product Size
