4-in-1 Wobble Laser Welding Head
The product is the latest handheld swing welding head hand, can be used for aluminium, iron, stainless steel plate and other metal sheet laser welding, can replace the traditional argon arc welding and electric welding process, widely used in cabinets, kitchens, lifts, shelves, ovens, stainless steel doors, windows and guardrails, power distribution boxes, stainless steel room and other industries, widely used.
Product Features

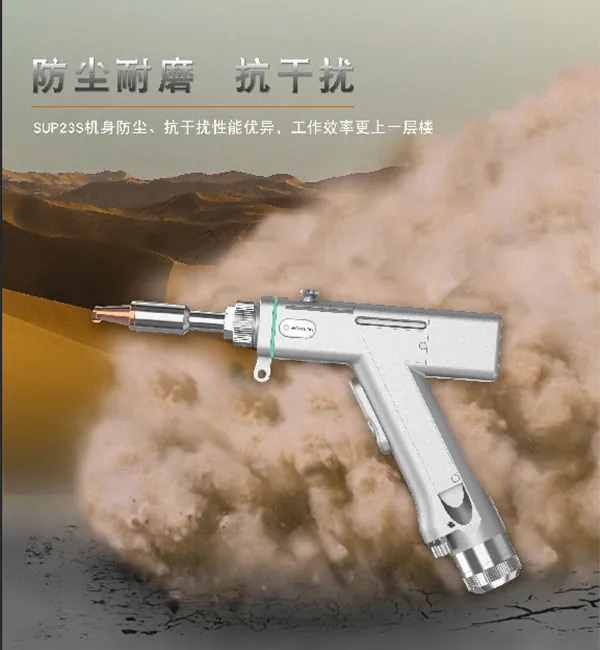

1. Dust and wear resistant, anti-interference —Dustproof body, good sealing, strong anti-interference ability, higher working effect
2. Efficient and Convenient — Focusing mirror, protective mirror drawer type, easy to change
3. Multi-point temperature measurement, real-time monitoring – self-developed safety detection system, real-time monitoring of multi-point temperature inside the fuselage 。
4. Lightweight – weighs only 0.75KG, ergonomically designed for long time welding operations without fatigue.
Parameter list
| Product Model | SUP23T |
| power level | 3000W |
| collimation focal length | 60mm |
| focusing distance | 150mm |
| maximum atmospheric pressure | 15Bar |
| Vertical Focus Range | ±10mm |
| Spot adjustment range | 0-8mm |
| Applicable wavelength | 1070nm |

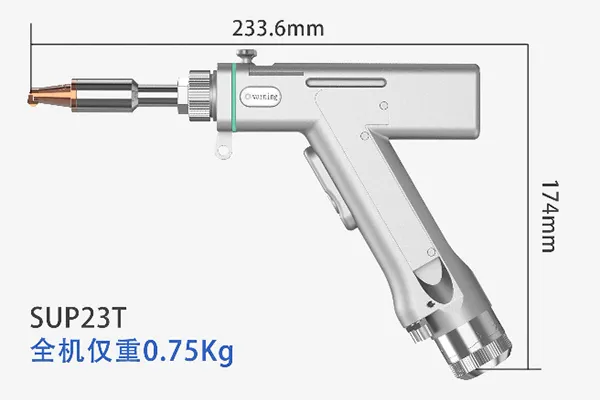

| sizes | 233.6*174mm |
| weights | 0.75kg |
Get Free Quote of 4-in-1 Wobble Laser Welding Head
4-in-1 Wobble Laser Welding Head Product Showcase
