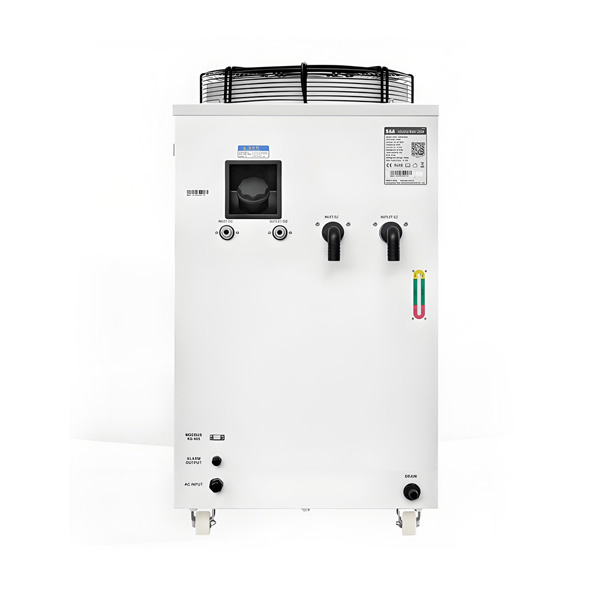

CW-4000W Laser Chillers
CWFL-4000 fibre laser chiller is designed for 4000W fibre laser equipment, dual temperature and dual control system cooling laser head and laser zones, multi-purpose to save cost and space. The bottom universal casters are easy to move, three-colour water level meter (red/yellow/green) and the drain hole in the lower right corner optimize operation and maintenance, support environmentally friendly refrigerant, integrated ModBus-485 communication and fault display function, with compressor delay/overcurrent, water flow and temperature abnormal alarms and other five-fold protection, adaptable to multi-country power supply and ISO9001, CE, RoHS, REACH certificates, stable refrigeration, easy to operate, with optional heater and laser chiller. It is easy to operate and can be equipped with optional heater and water purification module, providing efficient and safe cooling solutions for laser processing.
Product Features
- Stable refrigeration, environmental protection and energy saving, long service life.
- Laser chiller intelligent temperature controller with two temperature control modes, suitable for different use occasions; a variety of settings and fault display function.
- With a variety of alarm protection functions: compressor delay protection; compressor overcurrent protection; water flow alarm; temperature over/under the alarm.
- Multi-country power supply specifications; ISO9001 certified, CE certified, RoHS certified, REACH certified.
Laser Chiller Parameter List
| Model | CWFL-4000E | CWFL-4000B | ||
| Voltage | AC 3P 380V | AC 3P 220~240V | ||
| Frequency | 50HZ | 60HZ | ||
| Current | 1.7~13.6A | 3.6~29.7A | ||
| Max. power consumption | 5.62kW | 6 kW | ||
| Heater power | 0.55kW+1.4kW | |||
| Precision | ±1℃ | |||
| Reducer | Capillary | |||
| Pump power | 0..75kW | 1kW | ||
| Tank capacity | 22L | |||
| Inlet and outlet | Rp1/2″+Rp1/2″ | |||
| Max. pump pressure | 50M | 59M | ||
| Rated flow | 1.5 L/min + >30L/min | |||
| N.W. | 92Kg | |||
| G.W. | 106Kg | |||
| Dimension | 750X 560 X 1020mm (L X W X H) | |||
| Package dimension | 780 X 650 X 1170mm (L X W X H) | |||
