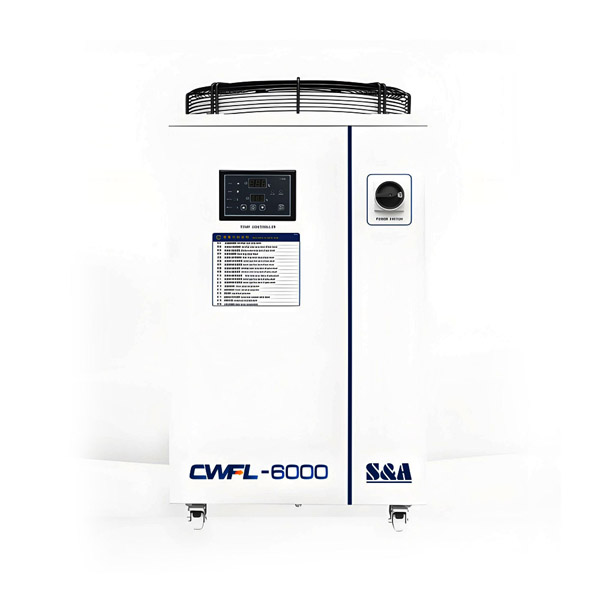

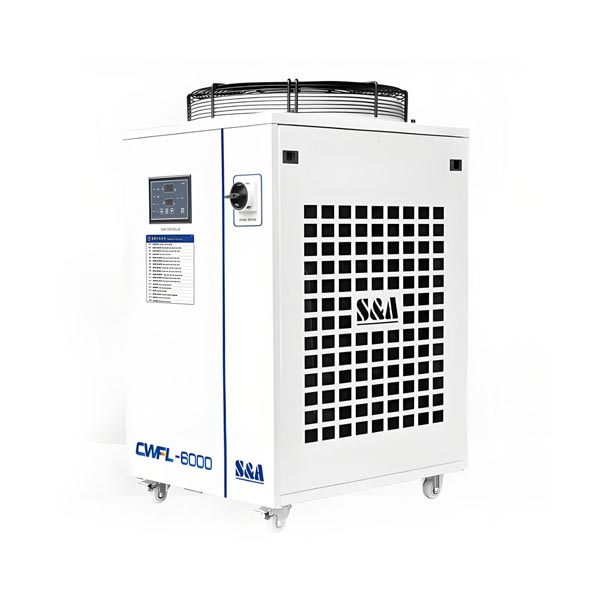

CWFL-6000 fibre laser chiller is specially designed for 6000W fibre laser, which can reduce the fluctuation of water temperature, stabilise the light output rate and prolong the life of laser. Its high and low temperature zoning design, high temperature end cooling cutting head, low temperature end cooling laser, suitable for high power laser cutting machine, with Modbus – 485 communication protocol, to achieve intelligent monitoring of water temperature. The machine can choose environmentally friendly refrigerant, rich features, including a variety of settings and fault display, with a compressor delay, overcurrent and other multiple alarm protection to protect the stability of the equipment. It is suitable for multi-national power supply, and has been certified by ISO9001 and other certificates, with excellent quality, stable cooling, easy operation, and can be equipped with optional heaters and water purification devices according to the needs.

Products Categories
Get A Free Quote
Contact Form

Product Features

  • Stable refrigeration, environmental protection and energy saving, long service life.
  • Laser chiller intelligent temperature controller with two temperature control modes, suitable for different use occasions; a variety of settings and fault display function.
  • With a variety of alarm protection functions: compressor delay protection; compressor overcurrent protection; water flow alarm; temperature over/under the alarm.
  • Multi-country power supply specifications; ISO9001 certified, CE certified, RoHS certified, REACH certified.



Laser Chiller Parameter List

Model CWFL-6000E CWFL-6000F
Voltage AC 3P 380V
Frequency 50HZ 60HZ
Current 2.1~18.8A 2.1~19.3A
Max. power consumption 7.48kW 8.44kW
Heater power 1kW+1.8kW
Precision ±1℃
Reducer Capillary
Pump power 1.1kW 1kW
Tank capacity 40L 22L
Inlet and outlet Rp1/2″+Rp1/2″ 10mm Barbed connector
Max. pump pressure 62M 59M
Rated flow 1.5 L/min + >50L/min
N.W. 108Kg
G.W. 122Kg
Dimension 750*560 * 1020mm (L X W X H)
Package dimension 780 * 650 X*1170mm (L X W X H)
