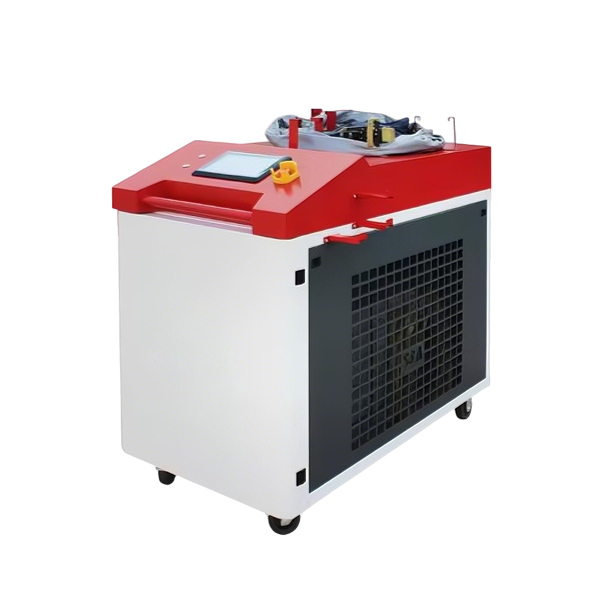

6000W Ship Rust Removal Laser Cleaning Machine
Employing a 6000W continuous fibre laser as the cleaning source, this mobile unit offers straightforward operation and outdoor capability. Primarily designed for large-scale applications such as rust and paint removal from vessels, surface rusting of substantial steel structures, and thick paint stripping, it effectively eliminates residual adhesives, oil contamination, coatings, and paint rust from metal surfaces.
Products Categories
Get A Free Quote
6000W Rust Removal Machine Introduction
- Lightweight and portable operation, handheld cleaning。
- Outstanding performance, ample power, excellent cleaning results, suitable for removing thick layers of paint.
- System stability, straightforward operation, no consumables required, environmentally friendly.
- Capable of automated cleaning, designed for use with robots.
- Widely used in the steel industry for cleaning, cleaning large vessels, and cleaning paint from second-hand machinery.
Rust Remover Machine Specifications List
| Equipment Model | CM-C6000 |
| Laser wavelength | 1080±5nm |
| Laser power | 6000W |
| Scope of cleaning | 10-500mm |
| Beam quality | ＜1.7 |
| Frequency Range | 2-50KHZ |
| Collimation distance | 75mm |
| Focus Distance | 1500mm |
| Scanning speed | 40000mm/s |
| Fibre length | 20M |
| Cooling method | Water-cooled |
| Laser Brand | IPG/Raycus/MAX etc. |
| Cleaning material | Surface coatings on metal, including paint, rust, oxide layers, oil stains, and mould spots. |
| Environmental Requirements | Temperature: 10°C to 40°C; Humidity: 5% to 75% |
| Equipment power consumption | 9.6KW |
| Electricity demand | AC 380V 50/60HZ |
| Language | Multilingual Switch |
| Equipment Dimensions and Weight | Length, width, height ：320*1100*1060mm 80KG |
