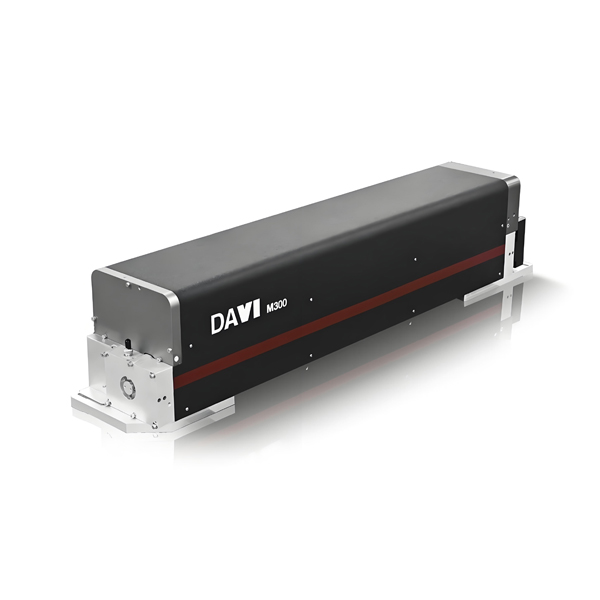

CO₂ 100W, 150W, 300W Laser Source
This series of CO₂ lasers offers excellent beam quality and power stability, with short pulse rise and fall times that significantly improve production efficiency. High peak power and outstanding beam quality make this CO₂ laser the ideal choice for a wide range of material processing applications.
Products Categories
Get A Free Quote
Product Features
Wide power range, high peak power.
Excellent beam quality, short power rise and fall times.
High power stability, RF power supply can be installed vertically or horizontally.
Laser Source Parameters
| Model number | CO₂-100W | CO₂-150W | CO₂-300W |
| Laser wavelength （um） | 9.3/10.6 | ||
| Average powe（W） | 100W | 150W | 300W |
| Peak power （W） | 250W | 375 | 750 |
| Power adjustment range （%） | 10-100 | ||
| Power stability （%） | ±6 | ±6 | ±6 |
| Beam quality （m²） | ＜1.3 | ＜1.3 | ＜1.2 |
| Pulse frequency(KHZ)（KHZ） | 0 ~ 100 | 0 ~ 100 | 0 – 100 |
| Cooling method | Air cooling/water cooling | water cooling | |
| Power requirements （VDC） | 48V 50A | 48V 50A | 48V 90A |
| Working environment | Temperature :5-35℃；humidity：-10%-60% | ||
| Dimensions（mm） | 909 x 165 x 135 | 909 x 165 x 135 | 1077 x 197 x 227 |
| Weight （KG） | 23 | 23 | 47 |
