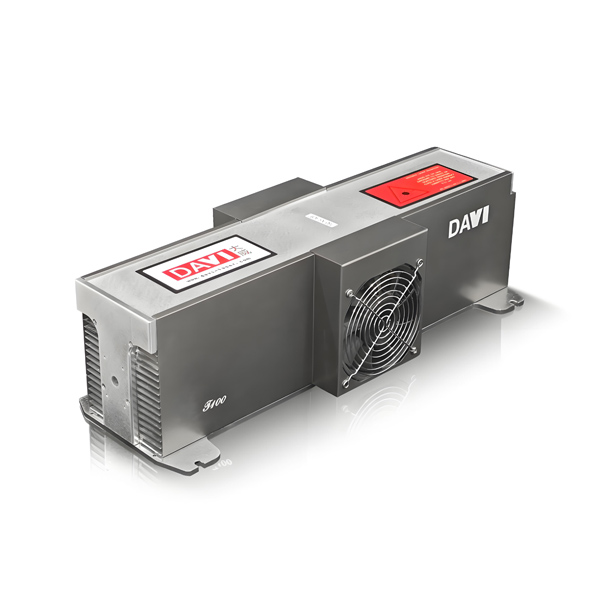

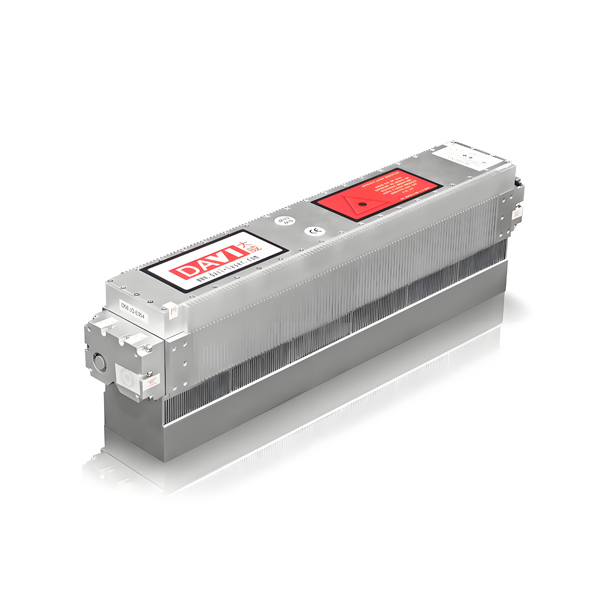

CO₂ 30W, 60W, 80W laser source
The RF CO2 Laser Source is highly reliable, with a tightly integrated design that integrates the RF power supply with the laser cavity for superior beam quality and quality stability. With laser wavelengths ranging from 9.3um to 10.6um, air and water cooled configurations, these features make it the laser of choice for high-performance laser marking and engraving systems, and with low operating and maintenance costs, this series of RF CO2 lasers is ideal for laser processing of a wide range of materials, including paper, plastics, wood, rubber, leather, fabric and more.
Products Categories
Get A Free Quote
Product Features
- Good beam quality, stable power output, high reliability.
- RF Power Supply and Laser Cavity Integration Design.
- High-quality laser processing (marking, engraving, cutting) on a wide range of materials.
Laser Source Parameters
| Model number | CO₂-30W | CO₂-60W | CO₂-80W |
| Laser wavelength （um） | 9.3/10.2/10.6 | ||
| Average powe（W） | 30W | 60W | 80W |
| Power adjustment range （%） | 10-100 | ||
| Power stability （%） | ±3 | ±3 | ±5 |
| Beam quality （m²） | ＜1.3 | ＜1.15 | ＜1.2 |
| Pulse frequency（KHZ） | 0 ~ 25 kHz | 0 ~ 25 kHz | 0 – 100 kHz |
| Cooling method | Air cooling/water cooling | ||
| Power requirements （VDC） | 48V 13A | 48V 25A | 48V 30A |
| Working environment | Temperature :5-35℃；humidity：-10%-60% | ||
| Dimensions | 359.2 x 92 x 140.1 | 539.2 x 92 x 155.2 | 535 x 192.9 x 156 |
| Weight （KG） | 6.3 | 10.2 | 14.5 |
