COHERENT CO₂ 150W-500W Laser Sources
Cuts, drills, internally engraves, scribes and marks a wide range of materials including plastics, metals, composites, PCBs, flex circuits, wood, die-cut boards, paper and cardboard.
Combines power, excellent beam quality and near-square wave pulses for high processing efficiency and speed. Low heat-affected zone and compact, fully sealed slat discharge structure for increased reliability and reduced cost of ownership
Products Categories
Get A Free Quote
Product Features
- Good beam quality, stable power output, high reliability.
- Wavelength options – 9.4 µm, 10.2 µm and 10.6 µm.
- Medium power – 150 W to 500 W output.
- High-quality laser processing (marking, engraving, cutting) on a wide range of materials.
Product Specification (DIAMOND J Series)
| Model number | Wavelength (μm) | Average power (W) | Peak power (W) | W*H(mm) | Lengths (mm) |
| DIAMOND J-2-9.4 | 9.4 | 160 | ≥450 | 198.1 x 227.6 | 830.5 |
| DIAMOND J-2-10.2 | 10.2 | 150 | ≥400 | ||
| DIAMOND J-2-10.6 | 10.6 | 180 | ≥450 | ||

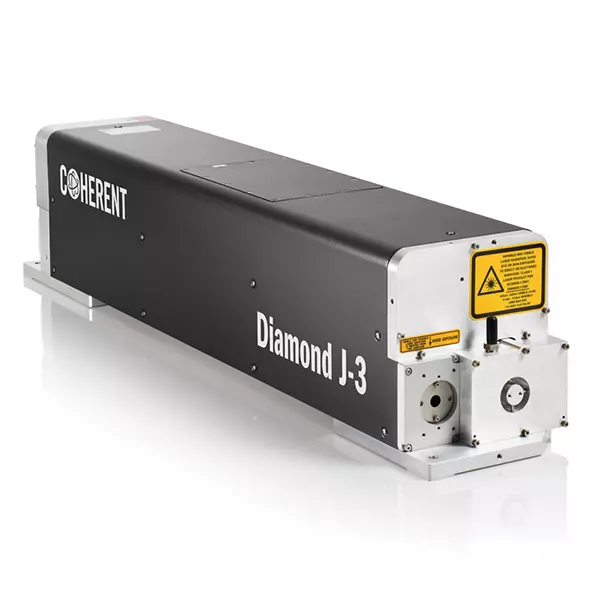

| DIAMOND J-3-9.4 | 9.4 | 250 | ≥750 | 1064.1 | |
| DIAMOND J-3-10.2 | 10.2 | 225 | |||
| DIAMOND J-3-10.6 | 10.6 | 250 | |||

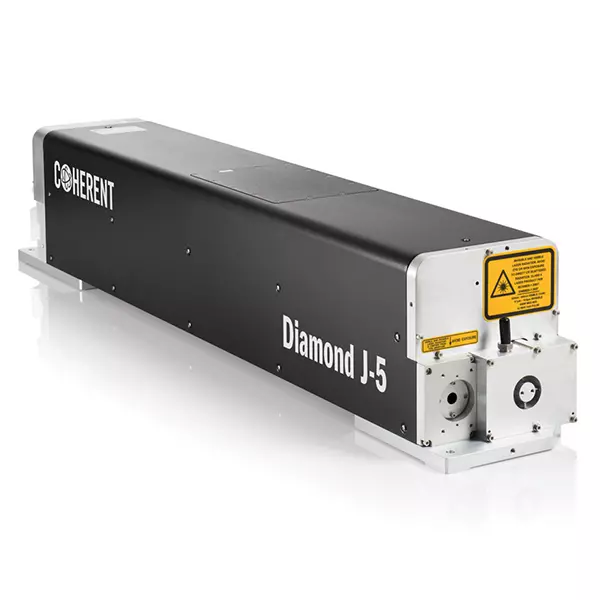

| DIAMOND J-5-9.4 | 9.4 | 400 | 1700 | 1225 | |
| DIAMOND J-5-10.6 | 10.6 | 450 | 1800 | ||

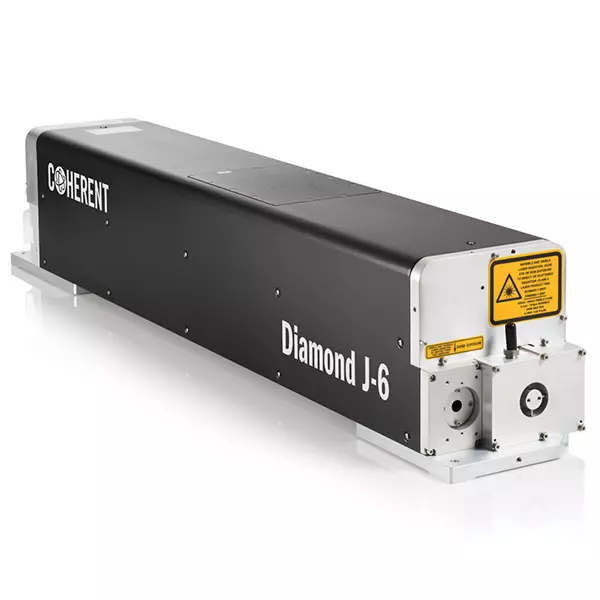

| DIAMOND J-6-10.6 | 10.6 | 500 | 1200 |
