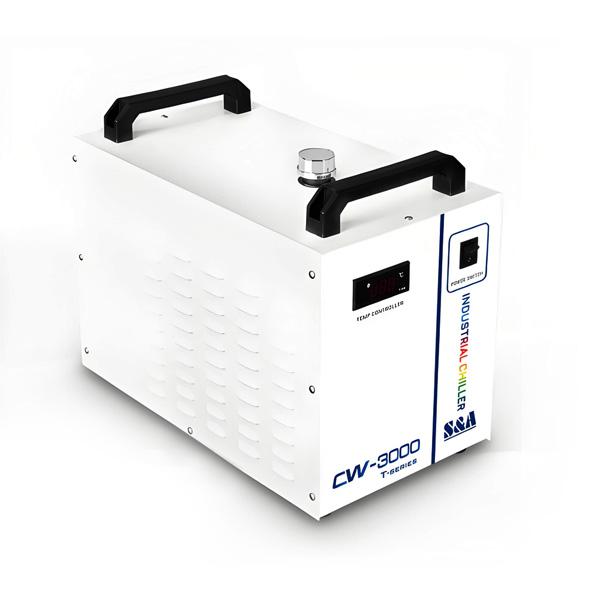

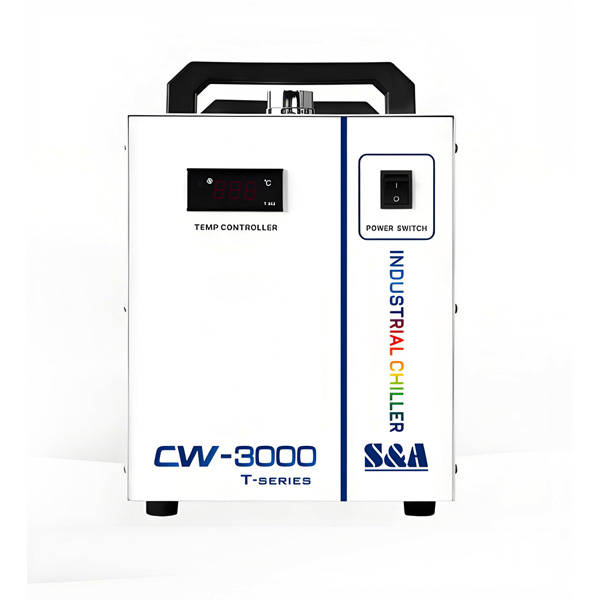

CW-3000 CO₂ Laser Chiller
CW-3000 carbon dioxide laser chiller, in the international industry market share of more than 60%, by the laser industry manufacturers favour. It is compact, easy to move, easy to install and operate. In order to ensure the safe operation of the laser, it is not only equipped with an anti-clogging heat exchanger, but also with flow monitoring triggered by the water flow alarm and ultra-high temperature alarm and other protective functions, and low energy consumption.
Products Categories
Get A Free Quote
Product Features
- Stable cooling, compact size, easy to operate.
- Temperature control accuracy up to ±0.1°C.
- Laser chiller intelligent temperature controller with two temperature control modes, suitable for different use occasions; a variety of settings and fault display function.
- With a variety of alarm protection functions: compressor delay protection; compressor overcurrent protection; water flow alarm; temperature over/under the alarm.
- Multi-country power supply specifications; ISO9001 certified, CE certified, RoHS certified, REACH certified.
Chiller Parameter List
| Model | CW-3000TG | CW-3000DG |
| Voltage | AC 1P 220~240V | AC 1P 110V |
| Frequency | 50/60Hz | 60HZ |
| Current | 0.4~0.7A | 0.4~0.9A |
| Max. power consumption | 0.07kW | 0.07kW |
| dissipation of heat | 50W/℃ | 50W/℃ |
| Precision | ±0.1℃ | |
| Tank capacity | 9L | |
| Inlet and outlet | Rp1/2″ | |
| Max. pump pressure | 10M | 7M |
| Max. pump flow | 10L/min | |
| Protection | Flow alarm | |
| N.W | 11KG | |
| G.W | 13KG | |
| Dimension | 490*270*380mm (L X W X H) | |
| Package dimension | 550*340*430cm (L X W X H) | |
