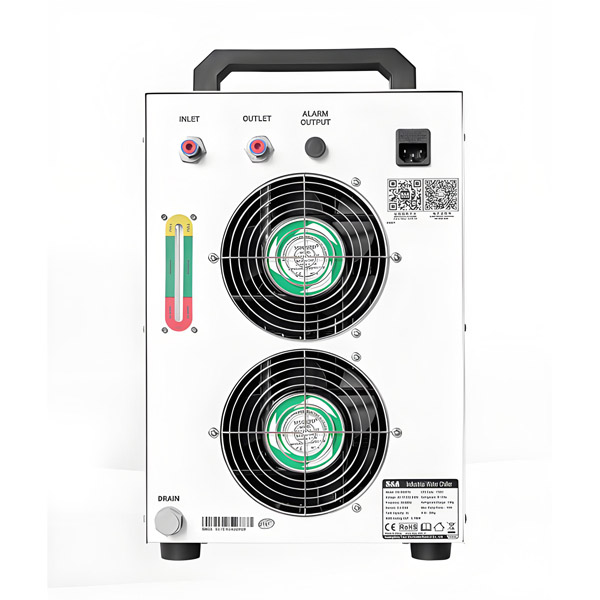

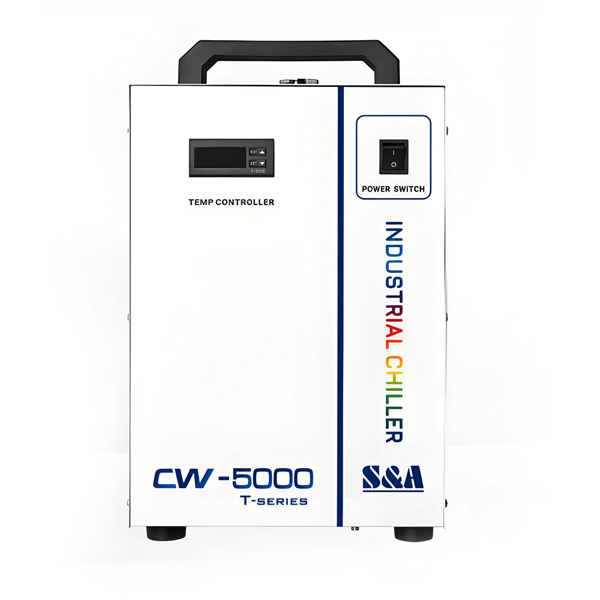

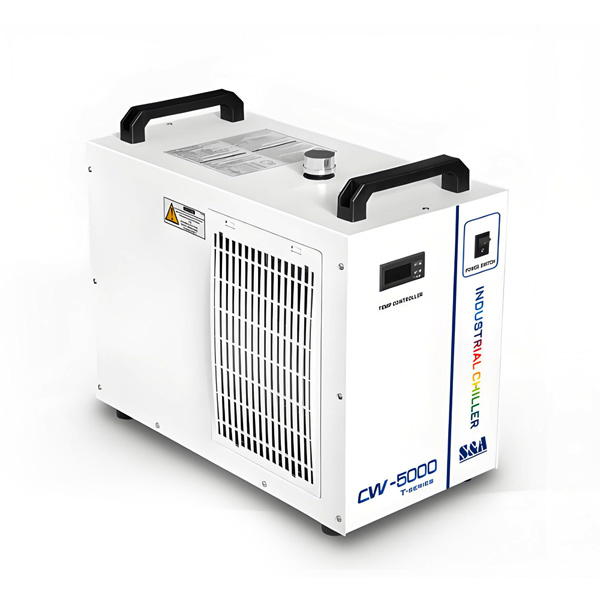

CW-5000 CO₂ Laser Chiller
CW-5000 CO₂ laser chiller is a cooling tool for CO2 laser equipment, which has outstanding temperature control performance. It can be adapted to CO₂ laser marking machine, engraving machine, welding machine, inkjet printer, cutting machine and other equipment to provide efficient and stable cooling, prolonging the life of the equipment and reducing the operating costs of enterprises.
Products Categories
Get A Free Quote
Product Features
- Cooling capacity up to 750W, using environmentally friendly refrigerant.
- Stable cooling, compact size, easy to operate.
- Temperature control accuracy up to ±0.3°C.
- Laser chiller intelligent temperature controller with two temperature control modes, suitable for different use occasions; a variety of settings and fault display function.
- With a variety of alarm protection functions: compressor delay protection; compressor overcurrent protection; water flow alarm; temperature over/under the alarm.
- Multi-country power supply specifications; ISO9001 certified, CE certified, RoHS certified, REACH certified.
Chiller Parameter List
| Model | CW-5000TG | CW-5000DG |
| Voltage | AC 1P 220~240V | AC 1P 110V |
| Frequency | 50Hz | 60HZ |
| Current | 0.4~2.8A | 0.4~5.2A |
| Max. power consumption | 0.46kW | 0.47kW |
| Compressor power | 0.37kW 0.49HP | 0.36kW 0.48HP |
| Nominal cooling capacity | 2559Btu/h 0.75kW 644Kcal/h | |
| Refrigerant | R-134a | |
| Precision | ±0.3℃ | |
| Reducer | Capillary | |
| Pump power | 0.03-0.09KW | |
| Tank capacity | 6L | |
| Inlet and outlet | 10mm Barbed connector | |
| Max. pump pressure | 10-25M | |
| Max. pump flow | 10-15L/min | |
| N.W | 19KG | |
| G.W | 23KG | |
| Dimension | 580*290*470mm (L X W X H) | |
| Package dimension | 650*360*510cm (L X W X H) | |
