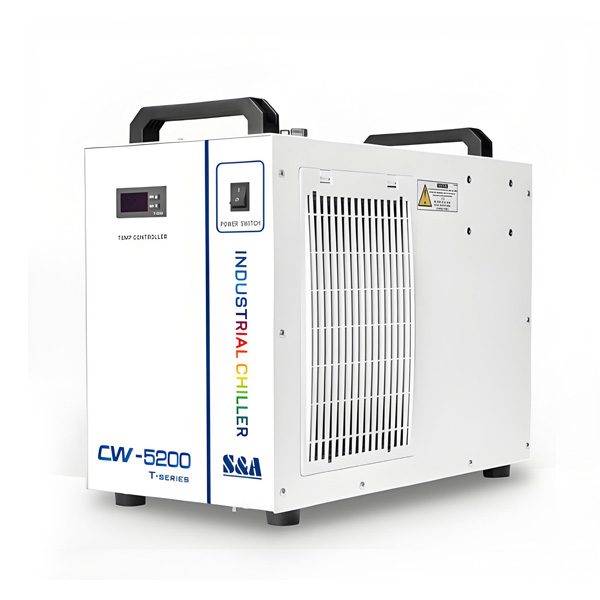

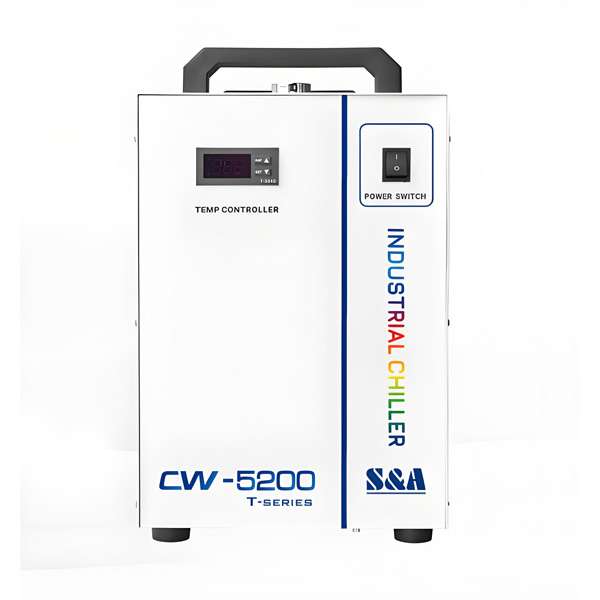

CW-5200 CO₂ Laser Chiller
CW-5200 chiller with compact design, small size and easy to move, designed for CO₂ laser equipment and spindle engraving machine and other scenarios developed to meet the needs of industrial-grade precision temperature control with stable refrigeration performance and convenient operation.
Products Categories
Get A Free Quote
Product Features
- Cooling capacity up to1430W, using environmentally friendly refrigerant.
- Stable cooling, compact size, easy to operate.
- Temperature control accuracy up to ±0.3°C.
- Laser chiller intelligent temperature controller with two temperature control modes, suitable for different use occasions; a variety of settings and fault display function.
- With a variety of alarm protection functions: compressor delay protection; compressor overcurrent protection; water flow alarm; temperature over/under the alarm.
- Multi-country power supply specifications; ISO9001 certified, CE certified, RoHS certified, REACH certified.
Chiller Parameter List
| Model | CW-5200TH | CW-5200DH | |
| Voltage | AC 1P 220~240V | AC 1P 110V | |
| Frequency | 50Hz | 60HZ | |
| Current | 0.5~4.8A | 0.5~8.9A | |
| Max. power consumption | 0.69/0.83kW | 0.79kW | |
| Compressor power | 0.56/0.7kW 0.75/0.93HP | 0.66kW 0.9HP | |
| Nominal cooling capacity | 4879Btu/h 1.43kW 1229Kcal/h | ||
| Refrigerant | R-134a | R-410A | |
| Precision | ±0.3℃ | ||
| Reducer | Capillary | ||
| Pump power | 0.05-0.09KW | ||
| Tank capacity | 6L | ||
| Inlet and outlet | 10mm Barbed connector | ||
| Max. pump pressure | 12/25M | ||
| Max. pump flow | 13/15L/min | ||
| N.W | 25KG | ||
| G.W | 28KG | ||
| Dimension | 580*290*470mm (L X W X H) | ||
| Package dimension | 650*360*510cm (L X W X H) | ||
