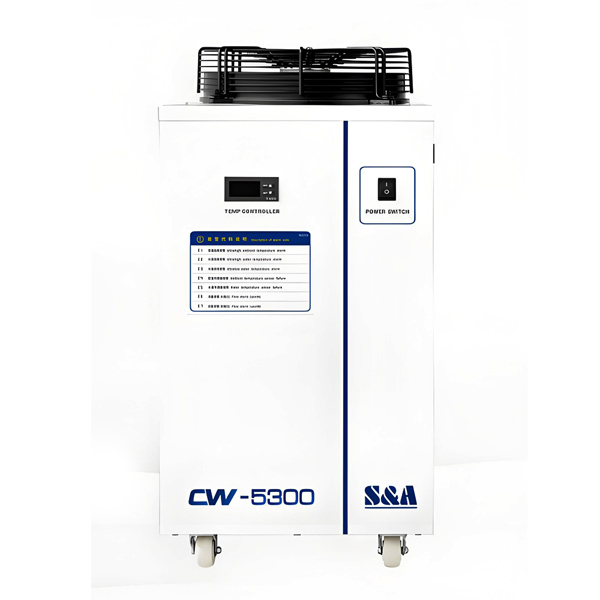

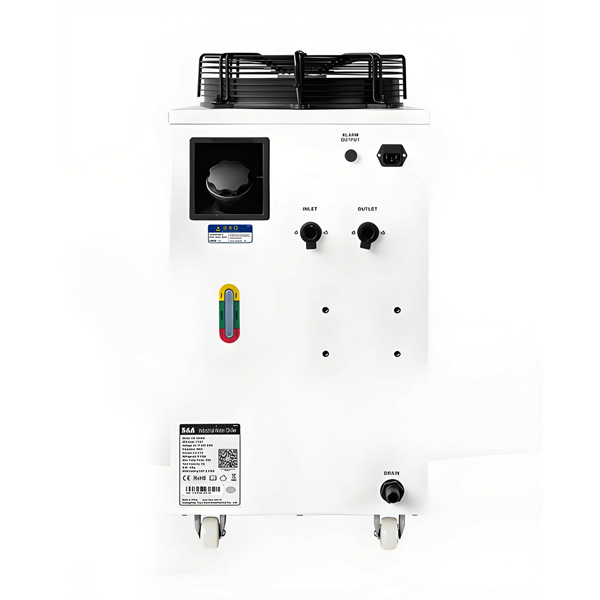

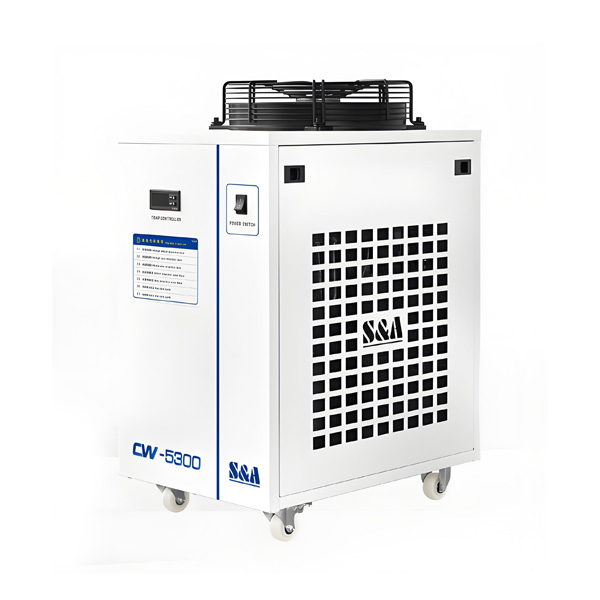

CW-5300 CO₂ Laser Chiller
The CW-5300 CO2 laser chiller has the advantage of providing highly reliable and effective cooling of CO₂ laser sources, helping to extend the life of CO₂ laser sources.
Products Categories
Get A Free Quote
Product Features
- Cooling capacity up to 2400W, using environmentally friendly refrigerant.
- Stable cooling, compact size, easy to operate.
- Temperature control accuracy up to ±0.3°C.
- Laser chiller intelligent temperature controller with two temperature control modes, suitable for different use occasions; a variety of settings and fault display function.
- With a variety of alarm protection functions: compressor delay protection; compressor overcurrent protection; water flow alarm; temperature over/under the alarm.
- Multi-country power supply specifications; ISO9001 certified, CE certified, RoHS certified, REACH certified.
Chiller Parameter List
| Model | CW-5300AH | CW-5300DH |
| Voltage | AC 1P 220~240V | AC 1P 110V |
| Frequency | 50/60Hz | 60HZ |
| Current | 0.5~5.2A | 0.5~8.9A |
| Max. power consumption | 0.5/4.9kW | 0.5/8.9kW |
| Compressor power | 0.88/0.94kW 1.18/1.26HP | 0.66kW 0.9HP |
| Nominal cooling capacity | 8188Btu/h 2.4kW 2063Kcal/h | |
| Refrigerant | R-410A | |
| Precision | ±0.3℃ | |
| Reducer | Capillary | |
| Pump power | 0.05/0.09/0.37/0.6KW | |
| Tank capacity | 12L | |
| Inlet and outlet | 10mm Barbed connector | |
| Max. pump pressure | 12/25/27/40M | |
| Max. pump flow | 13/15L/75L/min | |
| N.W | 45KG | |
| G.W | 52KG | |
| Dimension | 590*380*740mm (L X W X H) | |
| Package dimension | 660*480*92cm (L X W X H) | |
