Ezcad Laser Marking Control
The laser marking control system for the Beijing Golden Orange Ezcad marking system, is the world’s most widely used laser marking system, this control card is mainly used for the processing of two-dimensional products, using the USB interface to connect with the PC, a powerful graphic editing and a variety of marking functions in one, to meet a variety of high-precision, high-speed laser processing requirements.
Products Categories
Get A Free Quote
Product Features
1. Adopt USB2.0 interface, rich external expansion interface, versatility and ease of use stronger
2. Adopting the control chip with better computing performance, the control system is faster.
3. Designed with power overload, overcurrent and reverse connection protection for more reliable system operation.
Software Main Configuration
| Main configurations | |
| software core | 32-bit (computing) |
| lasers | Support CO2, YAG, FIBER, etc., according to the parameters of different lasers can be achieved by the software to adjust the current, pulse frequency, duty cycle and other parameters. |
| red light display | Support, red light is the indicator light |
| password control | Support that prevents parameters from being arbitrarily modified |
| IO control | The addition of port control makes it easy to automate your machines |
| galvanometer correction | Traditional trapezoidal, barrel (pillow) and parallelogram corrections. Dedicated calibration software for extremely accurate calibration results |
| padding | Ring fill, arbitrary angle fill, cross fill, adjustable margin, border, spacing. Support 3 layers of filling, each layer can be set independently. |
| editing function | Arbitrary curve text, arbitrary graph drawing/editing, breaking/combining, grouping/dissolving, cancelling/restoring, welding, trimming, crossing, aligning, automatic curve connection, etc. |
| Text input function | Support True Type fonts, monoline fonts (JSF), dot matrix fonts (DMF), SHX, and user-built fonts. |
| 256 Layer Processing Parameters | Customised for easy multi-parameter marking |
| Barcode & QR Code | Code39、EAN、PDF417、DATAMATRIX、QR等 Code39, EAN, PDF417, DATAMATRIX, QR, etc. |
| vector file | PLT、DXF、AI、DST、SVG、GBR、NC、JPC、BOT |
| bitmap file | BMP、JPG、JPEG、GIF、TGA、PNG、TIF、TIFF |
| Variable text | Fixed text, date, time, keyboard input, jump number, list file, dynamic file, support for EXCEL table, TXT file, support for serial communication, network communication |
| Multi-language support | Built-in Chinese, English, Korean, Japanese, French, German, can be translated by yourself according to the language pack, easy localisation |
| Optional Features | Single or no shaft |
Get Free Quote of Ezcad Laser Marking Control

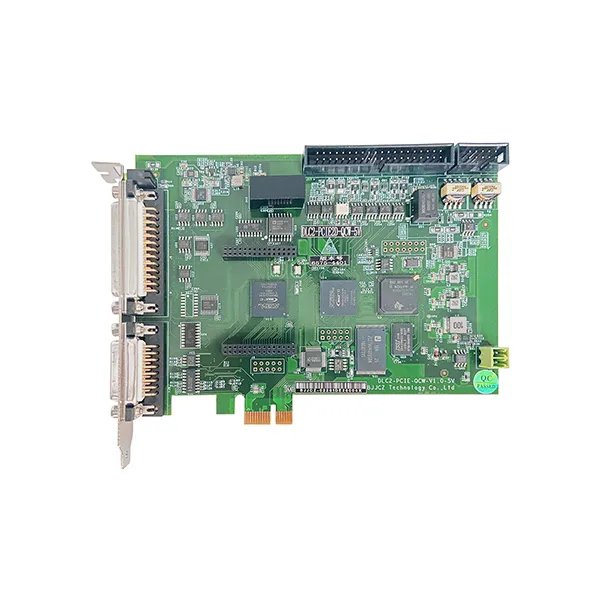

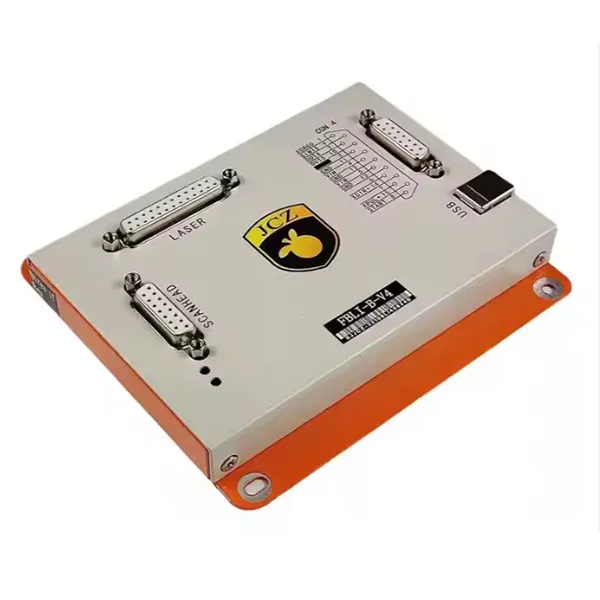

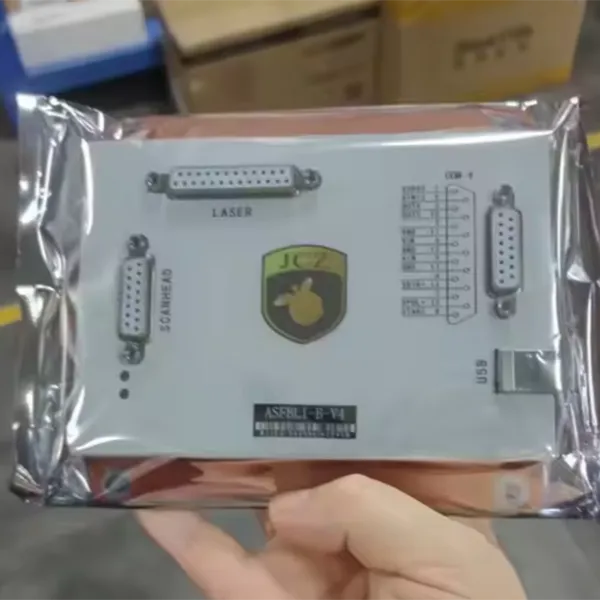

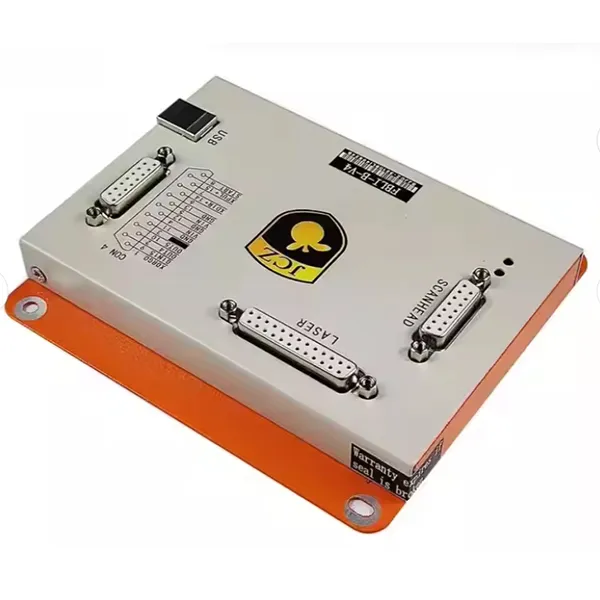

Sample photos
