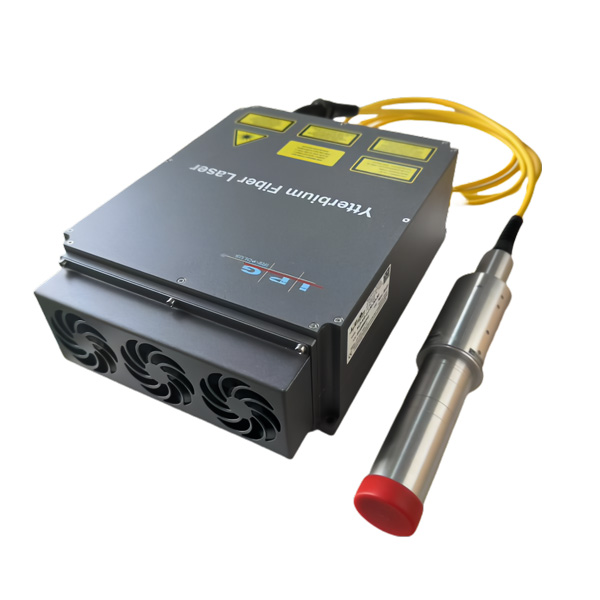

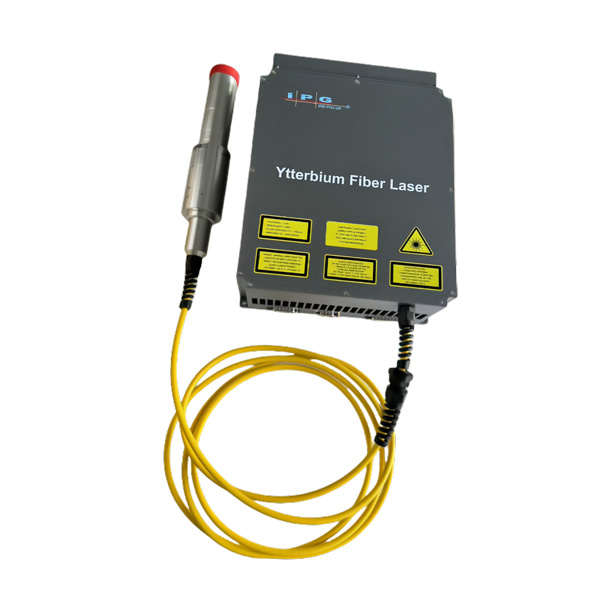

IPG 20W, 30W, 50W, 100W Fibre Laser Source
IPG Photonics offers YLPN Ytterbium Nanosecond Pulse Fiber Lasers with adjustable pulse waveforms in the range of 1 to 350 ns. The output powers range up to 50 W with pulse energies up to 1 mJ. Pulse repetition rates range from 2 kHz to 10 MHz. The laser power can be adjusted in a wide range of pulse repetition rates independent of the pulse energy. An output isolator ensures high output power stability and allows to process highly reflective materials.
Products Categories
Get A Free Quote
Product Features
- High reliability —all fibre optics, no spatial optics, fewer failures.
- Fine marking — good beam quality, small pulse width, more delicate marking graphics.
- Ease of integration —67% smaller and 50% lighter for easier device integration.
- Intelligent control — Built-in cooling fan can intelligently adjust the wind speed, convenient and energy-saving.
- Sealed structure — the use of fully sealed structure, dustproof and moisture-proof, to ensure that the machine operates for a long time.
Laser Source Parameters
| Model number | IPG-20W | IPG-30W | IPG-50W | IPG-100W |
| Wavelength nm | 1064 | |||
| Mode of Operation | Pulsed | |||
| Average Power（W） | 20 | 30 | 50 | 100 |
| Output Power Adjustment Range （%） | 10-100 | |||
| Pulse Energy （mJ） | Up to 1 mJ | |||
| Repetition Rate（kHz） | 2-4000 | 10-1000 | ||
| Beam Quality （M2） | ＜2 | |||
| Cooling | Air | |||
| Supply Voltage, VDC | 24 | |||
| Control Unit Dimensions | 215 * 286 * 95 | 215 *260 * 140 | ||
| Weight KG | 1.8 | 3.6 | 4.2 | 7.8 |
