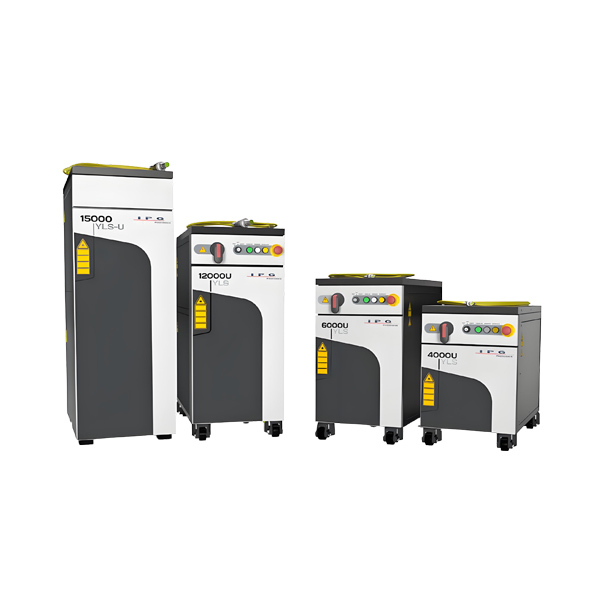

IPG 6000W Continuous Cutting Fibre Laser
The IPG 6000W laser source is a multi-mode laser that is cabinet-mounted and mobile, offering high beam quality and fast processing speeds. It is typically used in laser welding machines, cutting, 3D printing, and additive manufacturing applications.
Features of the IPG 6000W Continuous-Wave Fibre Laser
Modular design allows the outputs of multiple fibre laser modules to be combined into a single transmission fibre, enabling continuous operation even if a single module fails.
Long service life, capable of operating for more than ten years even under high-load conditions of the laser.
After decades of operation, the laser power and beam quality remain unchanged, ensuring high process quality and stability.
IPG high-power fibre lasers are ultra-compact and lightweight, saving valuable floor space and simplifying integration with production systems.
IPG high-power fibre lasers are the most energy-efficient lasers on the market, with electro-optical conversion efficiency that matches the price of the laser itself.
IPG 6000W Continuous Fibre Laser Specification List
| Model number | IPG-YLS-6000 |
| Laser wavelength （nm） | 1070±5 |
| Average power （W） | 6000W |
| Power adjustment range （%） | 10-100 |
| Maximum modulation frequency （KHZ） | 10 |
| Output power stability（%） | ±1 |
| Output connector | QBH |
| Beam quality （M²） | 2 |
| Polarisation state | Stochastic |
| Output fibre length （m） | 10（customisable） |
| core diameter （um） | 50/100 |
| Input power（VAC） | 50/60HZ 400-480V |
| Cooling method | Water cooling |
| Operating temperature（℃） | 10-40 |
| Dimensions （mm） | 448*820*930 |
| Weight （KG） | 140 |
