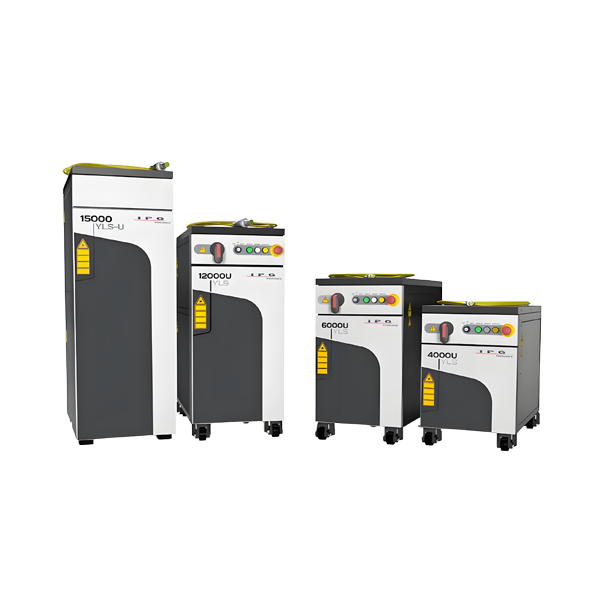

IPG 6000W Continuous Welding Fibre Laser
The IPG 6000W laser source is a multi-mode laser that is cabinet-mounted and mobile, offering high beam quality and fast processing speeds. It is typically used in laser welding machines, cutting, 3D printing, and additive manufacturing applications.
Products Categories
Get A Free Quote
IPG 6000W Fibre Laser Features
- Modular design allows the outputs of multiple fibre laser modules to be combined into a single transmission fibre, enabling continuous operation even if a single module fails.
- Long service life, capable of operating for more than ten years even under high-load conditions of the laser.
- After decades of operation, the laser power and beam quality remain unchanged, ensuring high process quality and stability.
- IPG high-power fibre lasers are ultra-compact and lightweight, saving valuable floor space and simplifying integration with production systems.
- IPG high-power fibre lasers are the most energy-efficient lasers on the market, with electro-optical conversion efficiency that matches the price of the laser itself.
IPG 6000W Fibre Laser Parameter List
| Model number | IPG-YLS-6000 |
| Laser wavelength （nm） | 1070±5 |
| Average power （W） | 6000W |
| Power adjustment range （%） | 10-100 |
| Maximum modulation frequency （KHZ） | 10 |
| Output power stability（%） | ±1 |
| Output connector | QBH |
| Beam quality （M²） | 2 |
| Polarisation state | Stochastic |
| Output fibre length （m） | 10（customisable） |
| core diameter （um） | 50/100 |
| Input power（VAC） | 50/60HZ 400-480V |
| Cooling method | Water cooling |
| Operating temperature（℃） | 10-40 |
| Dimensions （mm） | 448*820*930 |
| Weight （KG） | 140 |
