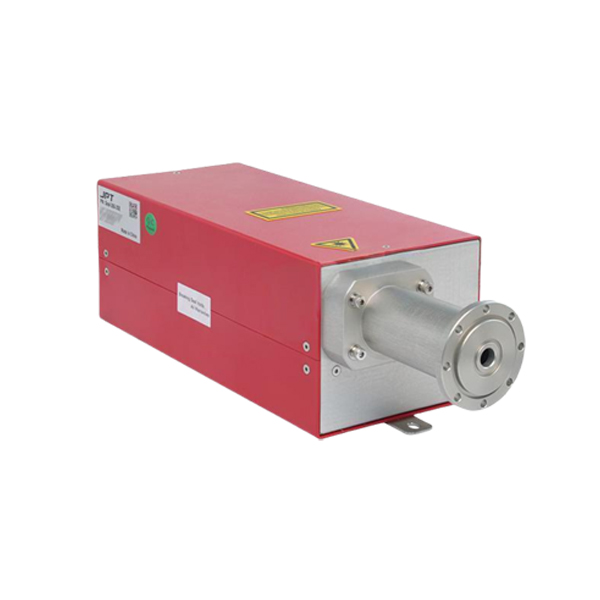

JPT UV 3W , 5W Laser Source
- Widely used in high-speed laser marking of plastics and other non-metals and precision punching and cutting of ultra-thin FPC.
- Optical integration, anti-interference, one-button activation
- Fully sealed structure, dust-proof, moisture-proof
- Introduces intracavity self-purification for longer life
- Small, compact laser saves installation space
Products Categories
Get A Free Quote
Laser parameters
| model number | UV-355-3W | UV-355-5W |
| wavelength （nm） | 355 | |
| average power （W） | 3W | 5W |
| pulse energy（mj） | ＞100 | ＞160 |
| Specified Frequency （KHZ） | 30 | |
| Repeat frequency range （KHZ） | 10-300 | |
| pulse width （ns） | ＜15 | |
| Beam quality（M²） Beam quality | ＜1.2 | |
| spot circularity （%） | 90% | |
| Beam diameter （mm） | ≈045 | |
| divergence angle（mRad） | ＜1.5 | |
| pointing stability（urad/℃） | ＜20 | |
| polarisation ratio | 100:1 Linear ; Horizontal | |
| （%RMS） | ＜3 | |
| Average power stability（% OVER 12hours） | ＜3 | |
| Environmental temperature （℃） | 5-40℃ | |
| Environmental humidity （%） | 20-80 | |
| storage temperature （℃） | -20-50 | |
| Storage humidity （%） | 20-80 | |
| demand for electricity supply （VDC） | 12 | |
| Average power consumption （W） | ＜110 | ＜130 |
| communication protocols | RS232 | |
| Cooling method | water cooling/air cooling | |
| Weights (KG） | 3.1 | |
Get Free Quote of JPT UV 3W , 5W Laser Source

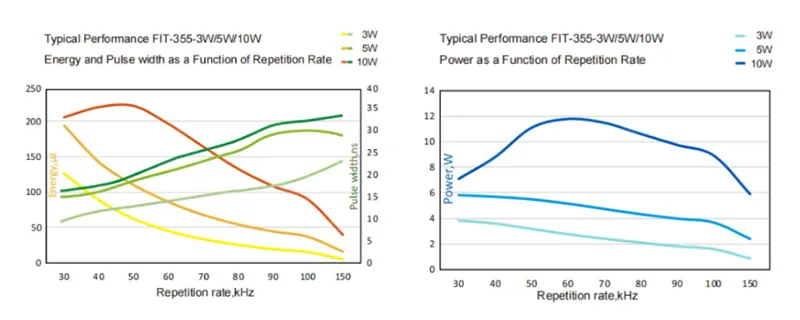

Test Performance
