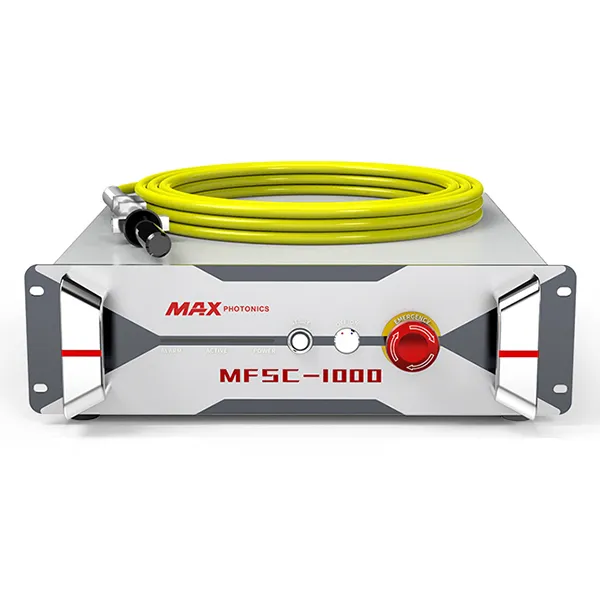

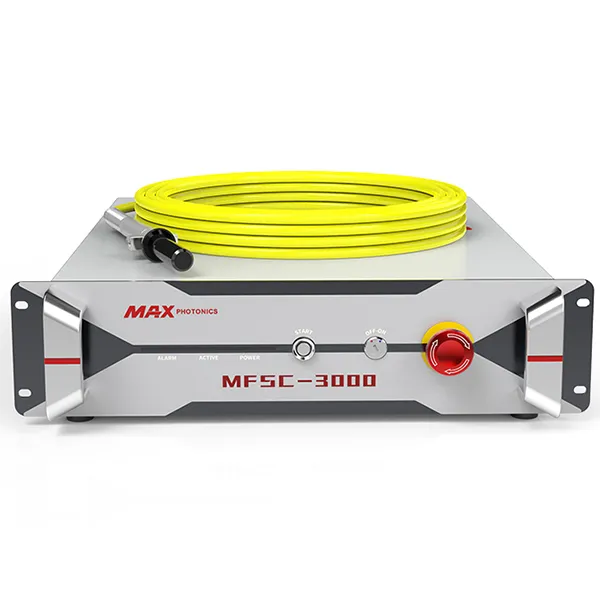

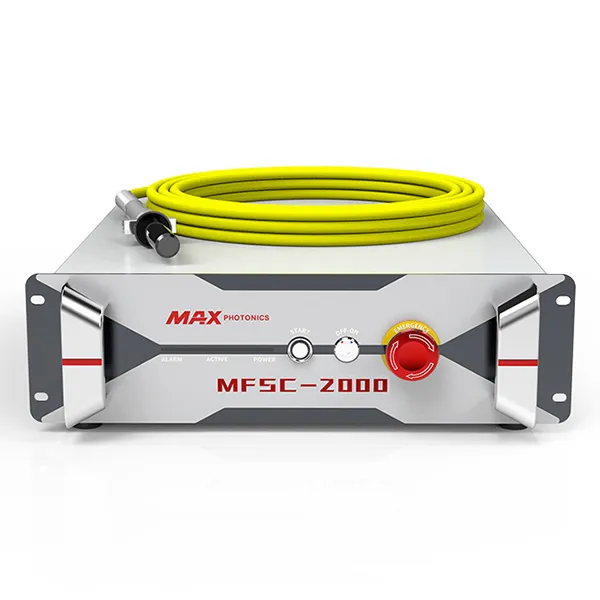

MAX 1000W, 1500W, 2000W, 3000W Laser Source
MAX MFSC 1000W/1500W/2000W/3000W single mode continuous fibre laser series, with modular design, highly integrated system, maintenance-free and high reliability. The laser power is continuously adjustable, with high beam quality and high laser stability, it is an ideal laser source for laser precision welding and other applications. It is the ideal laser source for laser precision welding and other applications. It adopts optical fibre with QBH head output, and can be integrated with laser processing head, vibrating mirror, etc. with robots and machine tools, and is widely used in the fields of 3C, hardware, medical, automotive, aviation, and so on.
Product Features
1. Modular design, stable performance — The internal structure of the photoelectric module separation design, more stable operation performance
2. Convenient maintenance and reduced downtime —Optical modules, electrical modules, control units, drive units can be replaced, upgraded and maintained directly on the client side
3. Customisable to meet a variety of needs – Users can choose different core diameters according to different processing needs, to meet the needs of differentiated processing
4. Uniform spot energy distribution for stable processing – Reduced weld spatter and more stable weldability for thick plates
5. Multi-scenario, wide range of applications – Can be combined with laser processing head, galvanometer, etc. with robots, machine tools, etc. for system integration, to do laser fine cutting, precision welding processing, applied to 3C, hardware, medical, automotive, aviation and other fields.
Laser parameters
| model number | MFSC-1000W | MFSC-1500W | MFSC-2000W | MFSC-3000W | |||
| Average power （W） | 1000W | 1500W | 2000W | 3000W | |||
| operating mode | progression/impulse | ||||||
| polarisation state | stochastic | ||||||
| Beam quality M² | 1.1-1.5 | ||||||
| centre wavelength （nm） | 1080 | ||||||
| Spectral bandwidth 3dB（nm） | 3-5 | 4-6 | |||||
| Power Adjustment Range （%） | 10-100 | ||||||
| Maximum modulation frequency （KHZ） | 20 | ||||||
| Indicated red power （μW） | 150 | 200 | |||||
| output method | QBH | ||||||
| Output power instability （%） | ±1 | ||||||
| Output Fibre Core Diameter （um） | 50（30/100） customisable | 50（25/100/200）customisable | |||||
| Fibre optic cable bending radius (mm) | 200 | ||||||
| Fibre optic cable length （m） | 15 | 20 | |||||
| operating voltage （VDC） | 220 | 380 | |||||
| Working environment temperature （℃） | 10~42 | ||||||
| storage temperature （℃） | 25（-10~60） | ||||||
| Relative humidity of working environment （%） | 10~95 | ||||||
| Cooling method | Water cooling | ||||||
| preheating time （min） | 1 | ||||||
| Dimension of the whole machine （mm） | 800×482.6×193.2 | 410×467×124 | 482.6×850×172 | ||||
| Weight （kg） | 48 | 28 | 35.5 | ||||
Get Free Quote of MAX 1/1.5/2/3KW

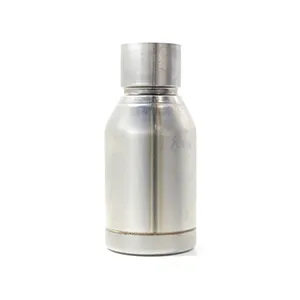

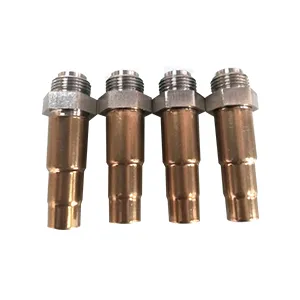

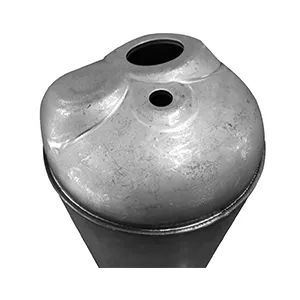

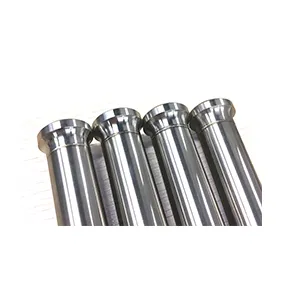

MAX 1/1.5/2/3KW Sample test photos
