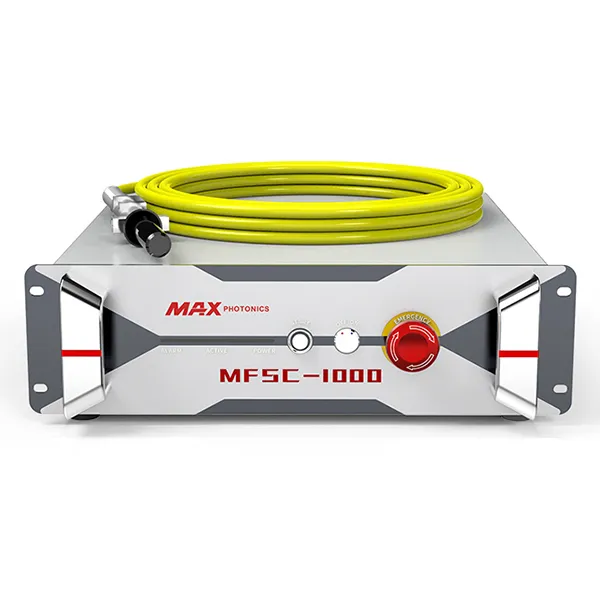

MAX 1000W, 1500W, 2000W Fibre Cutting Laser Source
The MAX MFSC 1000W/1500W/2000W is a single-module laser that combines high integration, compact size, user-friendly operation, high-quality beam quality, and high light conversion efficiency. It meets precision processing requirements, significantly improves cutting capabilities for highly reflective materials, and is suitable for remote processing. It features high laser cutting frequency and high cutting surface finish, and can be quickly and conveniently integrated into machine tools and large-scale manufacturers’ automated production lines.
Products Categories
Get A Free Quote
Product Features
- Modular design, stable performance — the internal structure of the photoelectric module separation design, more stable operation performance.
- Convenient maintenance and reduced downtime —— optical modules, electrical modules, control units, drive units can be replaced, upgraded and maintained directly on the client side.
- Customisable to meet a variety of needs – users can choose different core diameters according to different processing needs, to meet the needs of differentiated processing.
- Uniform spot energy distribution for stable processing – Reduced weld spatter and more stable weldability for thick plates.
- Multi-scenario, wide application — can be integrated with laser processing heads, robots, machine tools, etc. for system integration, performing laser precision cutting, and applied in 3C, hardware, medical, automotive, aviation, and other fields.
| Model number | MFSC-1000W | MFSC-1500W | MFSC-2000W |
| Average power （W） | 1000 | 1500 | 2000 |
| operating mode | progression/impulse | ||
| polarisation state | stochastic | ||
| Beam quality M² | 1.1-1.5 | ||
| centre wavelength （nm） | 1080±10 | ||
| Spectral bandwidth 3dB （nm） | 3-5 | ||
| Power Adjustment Range （%） | 10-100 | ||
| Maximum modulation frequency （KHZ） | 20 | ||
| Indicated red power （μW） | 150 | ||
| output method | QBH | ||
| Output power instability （%） | ±1 | ||
| Output Fibre Core Diameter （um） | 50（30/100/200可定制） | ||
| Fibre optic cable bending radius (mm) | 200 | ||
| Fibre optic cable length （m） | 15 | ||
| operating voltage （VAC） | 220 | ||
| Working environment temperature （℃） | 10~42 | ||
| storage temperature （℃） | 25（-10~60） | ||
| Relative humidity of working environment （%） | 10~95 | ||
| Cooling method | water cooling | ||
| preheating time （min） | 1 | ||
| Dimension of the whole machine （mm） | 800×483×194 | 410×467×124 | |
| Weight （kg） | 48 | 28 | |
