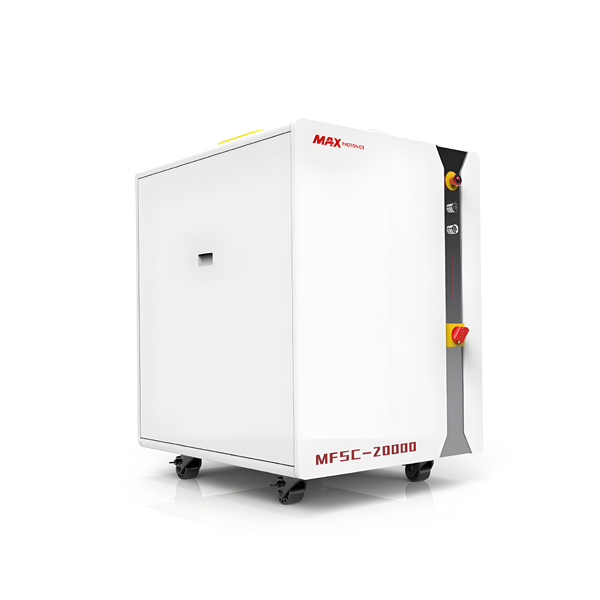

MAX 12000W, 20000W Fibre Cutting Laser Source
The MAX MFSC 12000W-20000W single-module continuous fibre laser is a high-power fibre laser with high electro-optical conversion efficiency, compact size, good beam quality, and maintenance-free operation. It is suitable for both high-speed cutting of thin plates and bright-surface cutting of medium-thick plates, greatly improving the quality of processes such as piercing, cutting, and welding. It is widely used in laser cutting, laser welding, laser cladding, laser brazing, and laser surface heat treatment.
Product Features
Small size, light weight—higher power output per module, more conducive to the integration of ultra-high-power lasers with power ratings in the tens of kilowatts.
Stable performance, suitable for both thin and thick materials—significantly improved speed for thin plates, and excellent cutting performance for thick plates.
Low power consumption, more energy efficient — energy consumption can be reduced by 25%.
Expert testing, authoritative recognition — After authoritative testing by a group of experts from the Testing Centre of the Institute of Optoelectronics, Chinese Academy of Sciences, all indicators and parameters were found to comply with industry regulations.
Multi-scenario, wide application — can be integrated with laser processing heads, robots, machine tools, etc. for system integration, performing laser precision cutting, and applied in 3C, hardware, medical, automotive, aviation, and other fields.
Laser Source Parameters
| Model number | MFSC-12000W | MFSC-20000W | ||
| Average power （W） | 12000W | 20000W | ||
| operating mode | progression/impulse | |||
| polarisation state | stochastic | |||
| Beam quality M² | 1.2-2 | 2-3 | ||
| centre wavelength （nm） | 1080±10 | |||
| Spectral bandwidth 3dB （nm） | 5-7 | |||
| Power Adjustment Range （%） | 10-100 | |||
| Maximum modulation frequency （KHZ） | 5 | 5 | ||
| Indicated red power （μW） | 200 | |||
| output method | QBH | |||
| Output power instability （%） | ±1 | |||
| Output Fibre Core Diameter （um） | 75（100/200可定制） | |||
| Fibre optic cable bending radius (mm) | 200 | |||
| Fibre optic cable length （m） | 20 | |||
| operating voltage （VAV） | 400±40 | |||
| Working environment temperature （℃） | 10~42 | |||
| storage temperature （℃） | 25（-10~60） | |||
| Relative humidity of working environment （%） | 10~95 | |||
| Cooling method | water cooling | |||
| preheating time （min） | 1 | |||
| Dimension of the whole machine （mm） | 535×825×580 | 775×950×1000 | ||
| Weight （kg） | 170 | 330 | ||
