MAX 6000W fibre Laser Source
MAX MFSC-6000W single-module continuous fibre laser is a high power fibre laser with high electro-optical conversion efficiency, compact size, good beam quality and maintenance-free, which can take into account the high-speed cutting of thin plates and bright cutting of medium-thick plates, greatly improving the quality of piercing, cutting and welding processes, and it is mainly used in the fields of new energy, 3C, precision machining, etc., such as metal piercing, cutting and welding.
Product Features
1. Small size and light weight —Single module higher power realisation, more favourable for integration of 10,000 watt ultra-high power lasers
2. Stable performance, both thick and thin – Thin plate speed significantly increased, thick plate cutting performance is also excellent
3. Less electricity, more energy – Energy consumption can be saved by 25 per cent
4. Expert testing, authoritative recognition – By the Chinese Academy of Sciences Institute of Photovoltaic Inspection Centre of the expert group authority testing, the indicators and parameters are in line with industry regulations
5. Wide range of applications—Used in new energy, 3C, precision machining and other metal punching, cutting, welding, etc.
Laser parameters
| model number | MFSC-6000W |
| Average power （W） | 6000W |
| operating mode | progression/impulse |
| polarisation state | stochastic |
| Beam quality M² | 3.2-3.8 |
| centre wavelength （nm） | 1080 |
| Spectral bandwidth 3dB （nm） | 4-6 |
| Power Adjustment Range （%） | 10-100 |
| Maximum modulation frequency （KHZ） | 5 |
| Indicated red power （μW） | 200 |
| output method | QBH |
| Output power instability （%） | ±1 |
| Output Fibre Core Diameter （um） | 100（50/150/200 customisable） |
| Fibre optic cable bending radius (mm) | 200 |
| Fibre optic cable length （m） | 20 |
| operating voltage （VDC） | 400（±40） |
| Working environment temperature （℃） | 10~42 |
| storage temperature （℃） | 25（-10~60） |
| Relative humidity of working environment （%） | 10~85 |
| Cooling method | water cooling |
| Dimension of the whole machine （mm） | 420×855.5×115 |
| Weight （kg） | 61 |
Get Free Quote of MAX 6KW

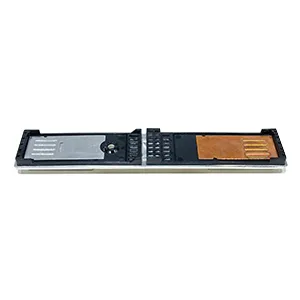

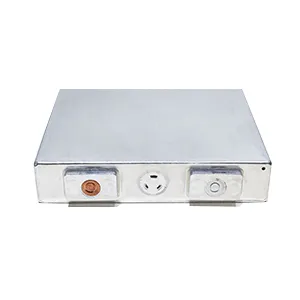

MAX 6KW Sample test photos
