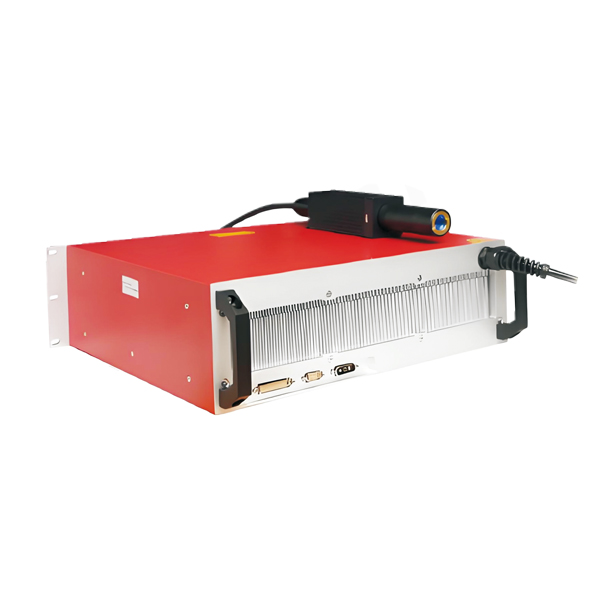

MOPA 100W, 200W, 300W Laser Cleaning Laser Source
MOPA pulse width adjustable pulsed fibre laser is a series of high-efficiency, high-reliability and high-performance pulsed fibre lasers in the wavelength range of 1060-1070 nm, which can satisfy most of the impurities on metal surfaces, such as corrosion, paint, coatings, oxidation layer, etc
Products Categories
Get A Free Quote
Product Features
- Adjustable pulse width and frequency — independently adjustable pulse width and frequency, wide range of pulse frequency, good beam quality.
- Easy to Integrate – can be integrated directly into the user’s device.
- Compact structure – small size, light weight, save installation space.
- Intelligent air cooling – efficient heat dissipation, more effective protection of the laser.
- Convenient operation – switching power supply – body integration, power can be used; built-in red light, accurate instructions.
- Maintenance-free – all fiber, no optics, optical path integration, long-term stable work.
- Wide range of applications – can meet most of the metal surface impurity treatment, such as rust, paint, coating, oxidation layer.
Laser Source Parameters
| Model number | JPT-MOPA-C100W | JPT-MOPA-C200W | JPT-MOPA-C300W | |||
| Average output power （W） | 100 | 200 | 300 | |||
| Operating mode | impulse | |||||
| Polarisation state | stochastic | |||||
| Beam quality （M²） | ≤1.8 | |||||
| Centre wavelength （nm） | 1064 | |||||
| Anti High Reflective | Yes | |||||
| Beam diameter （mm） | 6±1 | 7±1 | ||||
| Spectral bandwidth 3dB （nm） | 5-15 | |||||
| Power Adjustment Range （%） | 0-100 | |||||
| Maximum single pulse energy （mJ） | 1.5 | 5 | 15 | |||
| Pulse adjustable range （ns） | 2-500 | |||||
| Adjustable range of repetition frequency （KHz） | 1-3000 | |||||
| Output power instability （%） | ＜3 | |||||
| Power supply power (W) | ＜1400 | |||||
| Ambient supply current (A) | ＞18 | ＞27 | ||||
| Fibre optic cable length （m） | 5 | |||||
| Operating voltage （VDC） | 24V | 48V | ||||
| Working environment temperature （℃） | 0~42 | |||||
| 存贮温度（℃） storage temperature | -10~60 | |||||
| Relative humidity of working environment （%） | 10~95 | |||||
| Cooling method | Air cooling | |||||
| Dimension of the whole machine （mm） | 336*255*90 | 340×265×100 | ||||
| Weight （kg） | 8.5 | 9 | ||||
