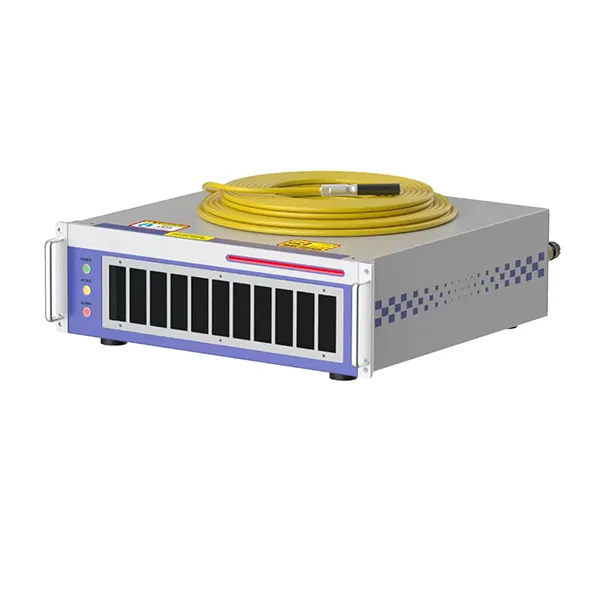

QCW 75W, 150W Laser Sources
1. Wide range of applications: mainly used for precision welding and precision cutting, such as computers, mobile phone parts processing, ceramic cutting, drilling, scribing and other processes
2. Continuous and pulsed modes
3. Extremely stable output performance
4. Excellent beam quality
Products Categories
Get A Free Quote
Laser source parameters
| model number | QCW-75W | QCW-150W |
| centre wavelength （nm） | 1080±10 | |
| operating mode （nm） | 连续/脉冲 | |
| modulation frequency （KHZ） | 10 | |
| Continuous Mode Maximum Power (W) | 75 | 150 |
| Maximum peak power in pulse mode | 750 | 1500 |
| Maximum pulse energy （J） | 7.5 | 15 |
| Pulse Width Range （ms) | 0.03-50 | |
| Power Stability (%) | ±1 | |
| Beam quality M² | 1.2 | |
| Spectral bandwidth(3dB)(nm) | 3-5 | |
| polarisation state | stochastic | |
| Power Adjustment Range (%) | 10-100 | |
| Indicated red power (μW) | ≥200 | |
| output method | QBH | |
| Output Cable Length (m) | 10 （customisable） | |
| Fibre optic cable bending radius (mm) | 200 | |
| Output Fibre Core Diameter （μm） | 50(可定制) customisable | |
| Supply Voltage (VAC) | 220 | |
| input power (KW) | 0.5 | 1 |
| Working environment temperature (℃ ) | 10-35 | |
| Relative humidity of working environment (%) | 10-80 | |
| storage temperature (℃ ) | -10-60 | |
| Cooling method | air cooling | |
| Dimension of the whole machine | 485*482*131.5 | 448*510.5*131.5 |
| Weight (kg) | 31 | 34 |
Get Free Quote of QCW 75W, 150W Laser Sources

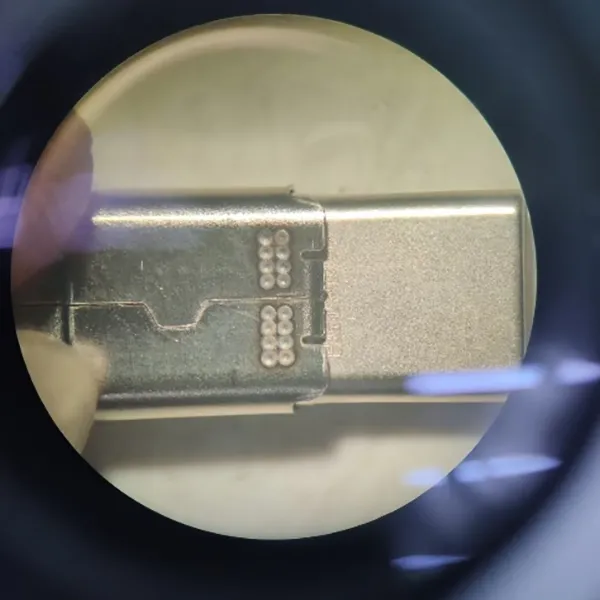

QCW 75/150W Sample photos
