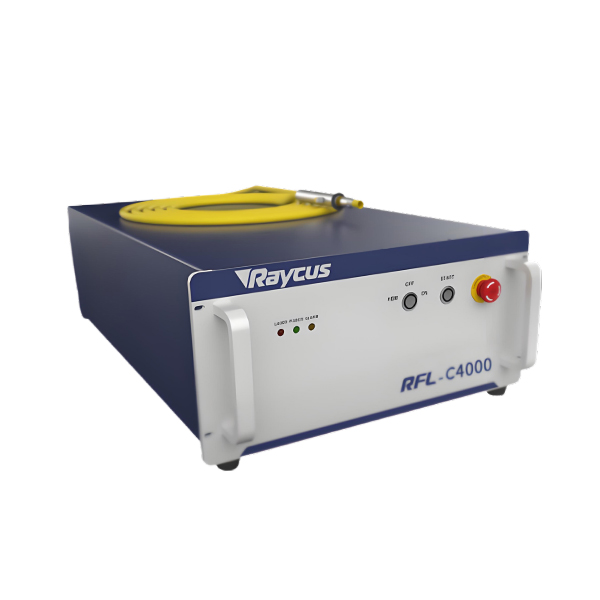

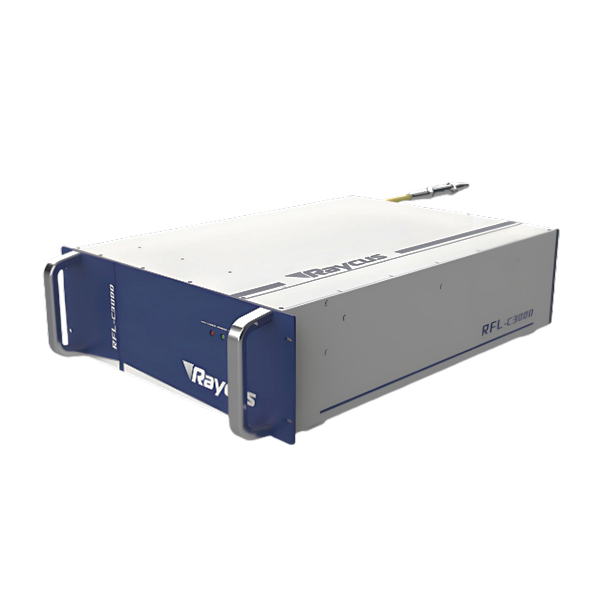

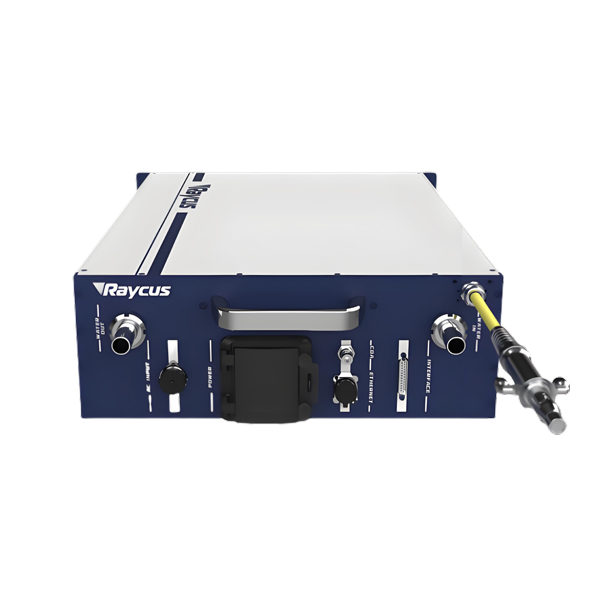

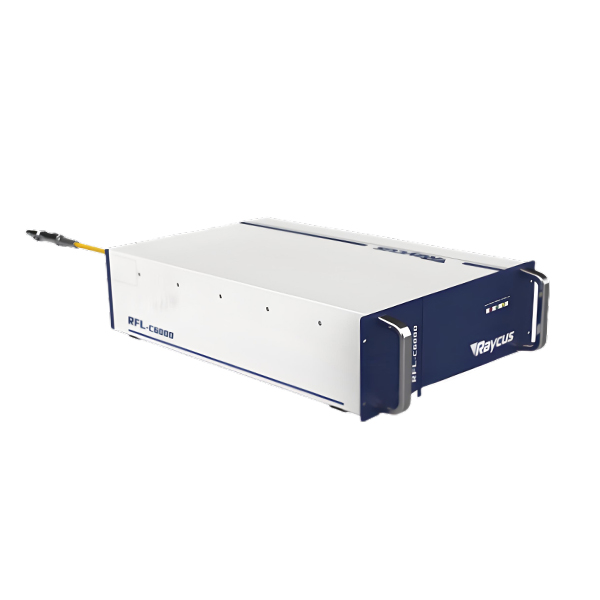

Raycus 3000W, 4000W, 6000W Fibre Laser Source
Fibre lasers offer higher electro-optical conversion efficiency, lower power consumption, and higher beam quality compared to traditional lasers.
They feature a compact design and are ready for immediate use. Thanks to their flexible laser output method, they can be easily integrated with system equipment.
Products Categories
Get A Free Quote
Product Features
- High electro-optical conversion efficiency, good beam quality.
- Wide modulation frequency range, strong anti-high reflection capability.
- QBH connector, easy to install and remove, maintenance-free.
- Fibre length can be customised, with high cutting and welding efficiency.
| Model number | RFL-C3000 | RFL-C4000 | RFL-C6000 |
| Laser wavelength nm | 1080±5 | ||
| Average power （W） | 3000W | 3000W | 6000W |
| Power adjustment range （%） | 10-100 | ||
| maximum modulation frequency （KHZ） | 5 | ||
| Output power stability （%） | ±1.5 | ||
| Output connector | QBH | ||
| Beam quality（M²） | 1.4 | 5 | 2.7 |
| Polarisation state | stochastic | ||
| Output fibre length（m） | 20 customisable | ||
| Input power （VAC） | 380±10% | ||
| Cooling method | water cooling | ||
| Operating temperature （℃） | 10-40 | ||
| Dimensions （mm） | 485*736*164 | 447*730*250 | 455×760×168 |
| Weight （KG） | 40 | 65 | 68 |
