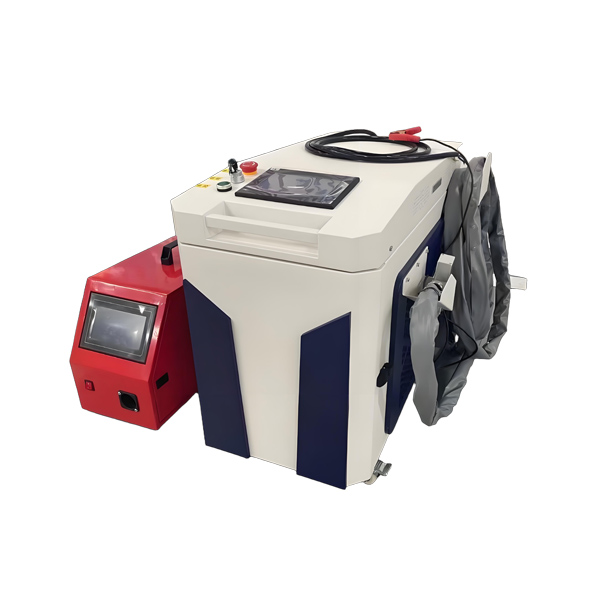

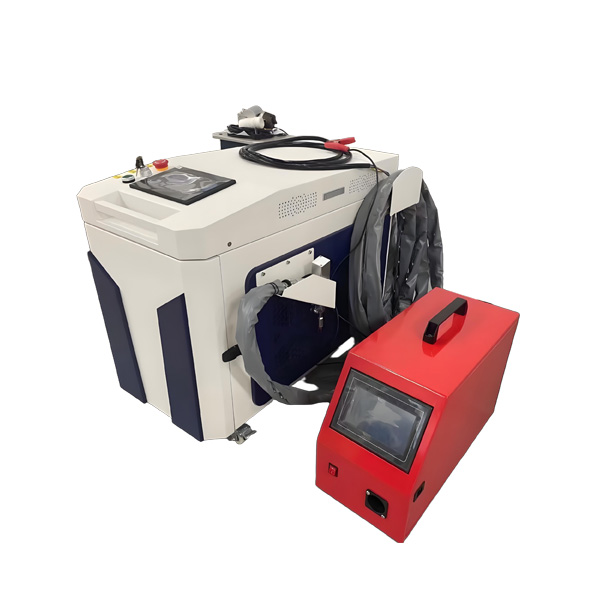

1500W 、2000W 、3000W Handheld Oscillating Laser Welding Machine
This machine is the latest handheld laser welding machine on the market. It uses a continuous fibre laser and a handheld welding gun, and is mainly used for welding stainless steel, aluminium alloy, galvanised sheet metal, copper and other metal materials. It has a fast welding speed and is easy to operate. It is widely used in the welding of sheet metal cabinets, metal kitchen and bathroom products, outdoor metal railings and other industries.
Products Categories
Get A Free Quote
Characteristics of Handheld Laser Welding
- Easy to operate, multi-language interface options, ordinary welders can master it within 2 hours.
- Laser welding offers strong penetration, secure welds, and no need for grinding, replacing existing welding processes such as argon arc welding.
- Minimal local heat impact, no deformation of welded products.
- Depending on the size of the weld seam, automatic wire feeding welding can be performed.
- Depending on the process requirements, you can choose a 3-in-1 multi-functional handheld gun for welding, cutting, and cleaning.
Handheld Laser Welder Specification Sheet
| Machine Model | CM-WFH1500 | CM-WFH2000 | CM-WFH3000 |
| Laser Wavelength | 1080±5nm | ||
| Maximum Output Power | 1500W | 2000W | 3000W |
| Fibre length | 20m | ||
| Adjustable Power Range | 10-100% | ||
| Laser Modulation Frequency | 50KHZ | ||
| Laser Operating Mode | Continuous/Pulse | ||
| Spot Adjustment Range | 0.5-5mm Swing welding | ||
| Power Stability | ±1% | ||
| Cooling Method | Water Cooling | ||
| Positioning Method | Red Light Indicator | ||
| Supported Languages | Multilingual | ||
| Laser brand | IPG/Raycus/MAX/Reci/BWT | ||
| Average power consumption of the entire machine | 3.5KW | 5KW | 6KW |
| Welding materials and thickness | Stainless steel, aluminium alloy, galvanised sheet metal, copper and other metals; thickness: 0.5-5 mm | ||
| Environmental requirements | Temperature 10-40℃ Humidity 10~85% | ||
| Working Power Supply | AC 220V 50/60HZ | AC 380V 50/60HZ | |
| Equipment dimensions and weight | 450*820*870mm 140KG | ||
