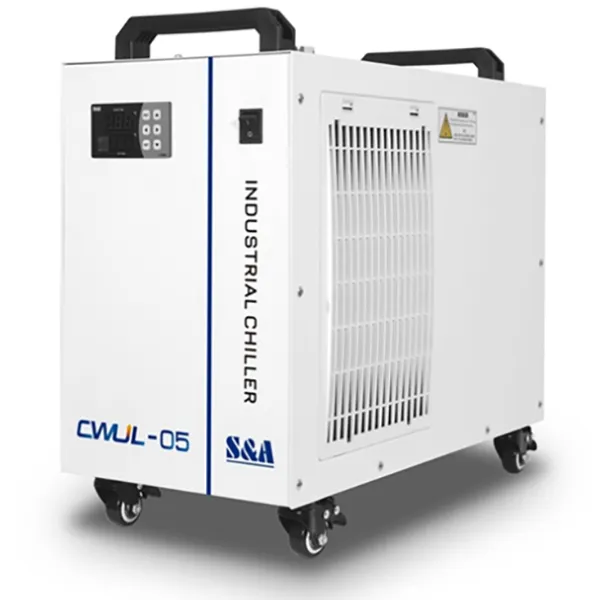

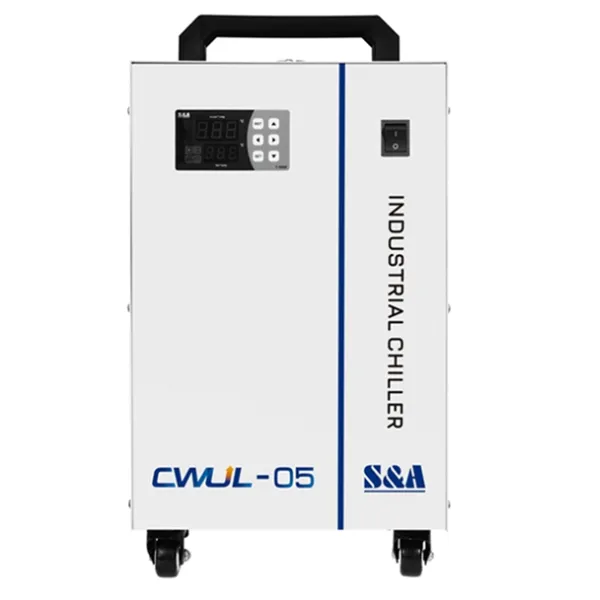

UV-3/5W Water Chiller
CWUL-05 chiller, cooling capacity up to 430W, temperature control accuracy ± 0.3 ℃, suitable for cooling 3W-5W UV solid-state laser. The model has a compact structure, small size, easy to move. Contains output signal control function and cooling water flow, high and low temperature alarm and other multi-functions.
Product Features
1. Cooling capacity up to 430W, using environmentally friendly refrigerant
2. Stable cooling, compact size, easy to operate
3. Temperature control accuracy up to ±0.3°C
4. Laser chiller intelligent temperature controller with two temperature control modes, suitable for different use occasions; a variety of settings and fault display function。
5. With a variety of alarm protection functions: compressor delay protection; compressor overcurrent protection; water flow alarm; temperature over/under the alarm
6. Multi-country power supply specifications; ISO9001 certified, CE certified, RoHS certified, REACH certified
7. Optional heater and water purification configurations available
Product Parameter
| Model | CWUL-05AH | CWUL-05BH | CWUL-05DH | ||
| Voltage | AC 1P 220~240V | AC 1P 220~240V | AC 1P 110V | ||
| Frequency | 50Hz | 60Hz | 60Hz | ||
| Current | 0.5~4.2A | 0.5~3.9A | 0.5~7.4A | ||
| Max. power consumption | 0.76kW | 0.77kW | 0.8kW | ||
| Compressor power | 0.18kW 0.24HP | 0.19kW 0.25HP | 0.21kW 0.28HP | ||
| Nominal cooling capacity | 1296Btu/h 0.38kW 326Kcal/h | ||||
| Refrigerant | R-134a | ||||
| Precision | ±0.3℃ | ||||
| Reducer | Capillary | ||||
| Pump power | 0.05kW | ||||
| Tank capacity | 6L | ||||
| Inlet and outlet | Rp1/2″ | ||||
| Max. pump pressure | 12M | ||||
| Max. pump flow | 13L/min | ||||
| N.W | 19Kg | 19Kg | 22Kg | ||
| G.W | 22Kg | 21Kg | 25Kg | ||
| Dimension | 58 X 29 X 52cm (L X W X H) | ||||
| Package dimension | 65 X36 X 56cm (L X W X H) | ||||
Get Free Quote of UV-3/5W Water Chiller

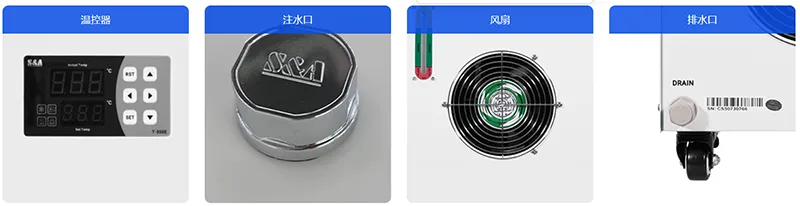

Product Details
