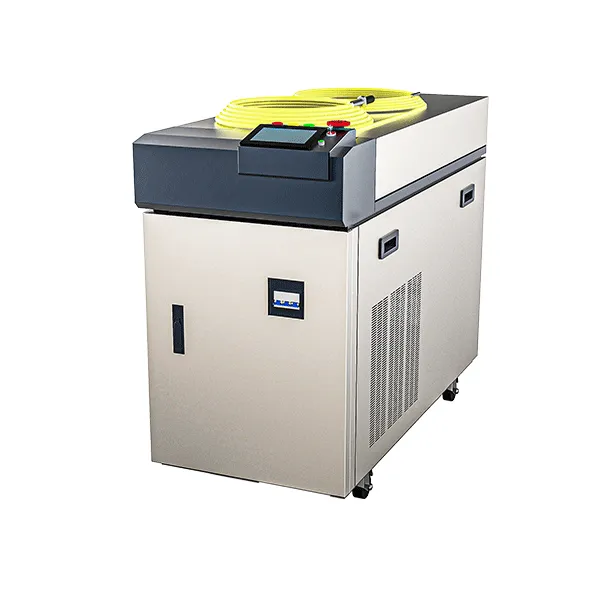

YAG 80W Pulse Spot Welding Laser Source
YAG 80W Pulse Spot Welding Laser Source

YAG 80W Pulse Spot Welding Laser Source

YAG-80W This product adopts fibre-optic conductive output, capable of single and multiple light path output, flexible with a variety of workstations. Unique optical system design with imported quartz optical lenses, the latest coating technology, high damage resistance threshold, beam quality and stability, with power feedback system light source.

Products Categories
Get A Free Quote
Contact Form

Product Features

1. Fibre-optic conduction output for energy splitting and time splitting

2. With energy feedback technology, stable energy and good welding consistency.

3. Unique optical design, imported optical lenses, high anti-damage threshold, good beam quality

Welding mainframe parameters

model number YAG-80W
Wavelength (nm) 1064
output power (W) 80
operating mode impulse
Maximum peak power (KW) 5
pulse width (ms) 15
Maximum pulse energy (J) 50
repetition rate (HZ) 100
Power Stability (%) ±3
Average power consumption (KW) 3
Cooling method built-in water cooling
operating voltage (VDC) 380 50/60HZ
Sizes (mm) 1175*515*980
Weights (KG) 170

Get Free Quote of YAG-80W Laser Source

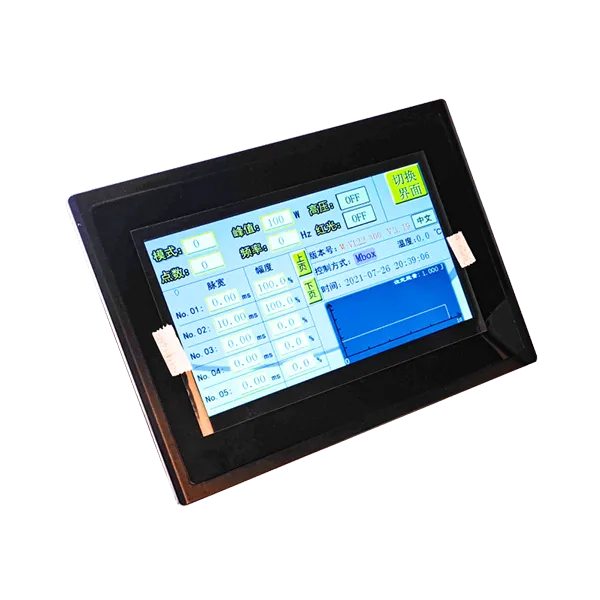

Sample photos
